4ft high temp Vapor Tight Led Light Fixture

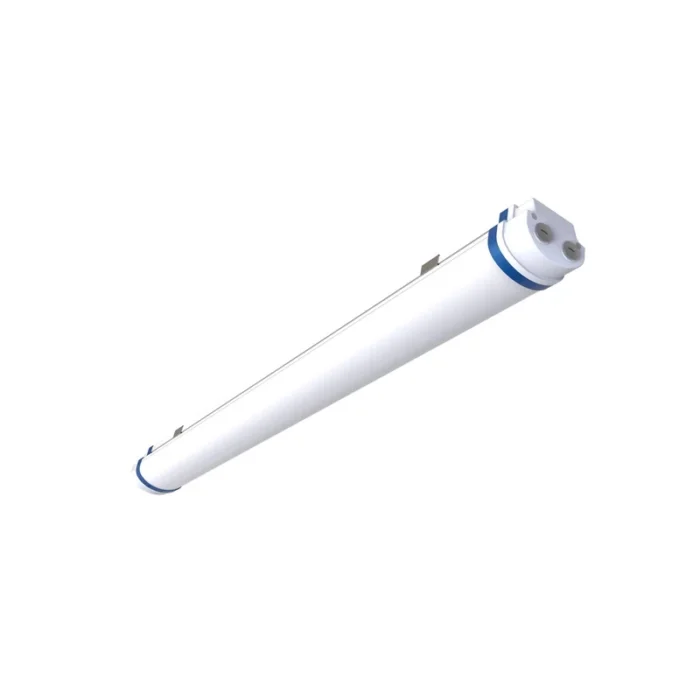

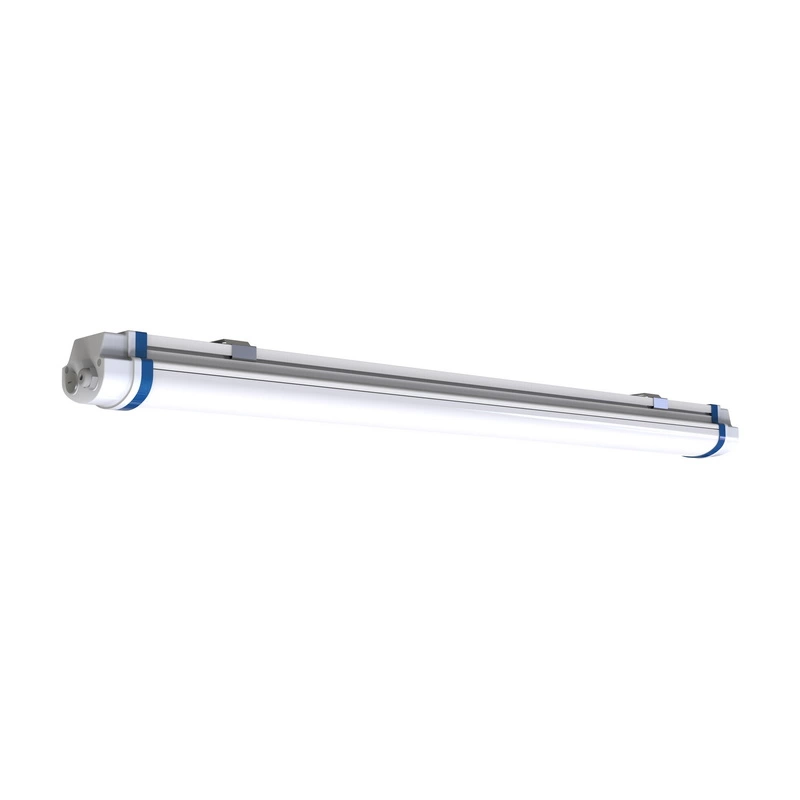

75℃ High Temp Linear Vapor Tight LED Light Fixture

This is vapor tight LED light fixture that can withstand 75℃ ambient temperatures. The light body is extremely robust and has excellent heat dissipation, it boasts multiple protection ratings including IP66/IP69K & IK10 and is corrosion-resistant. Using more heat-resistant drive power is key to ensuring long-term stability in high temperature area. Its designed to achieve long lifespan, low maintenance, and high efficiency in harsh environments. 2/4ft linear design makes it more advantageous than high temp high bay types in small, heat space. Optional ceiling mounting or suspending, widely used in industrial and commercial areas.

Product Features

40W, 60W, 75W, 100W
Withstands ambient temperature of 75℃
Fully sealed, vapor resistant
IP66/IP69K & IK10 protection
High intensity PC & extruded aluminum
0-10V dimmable

🔔 Ledrhythm products are designed for the global market. Please contact our sales team for certification details.

🔔 Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.

high temp vapor tight led tri proof lights

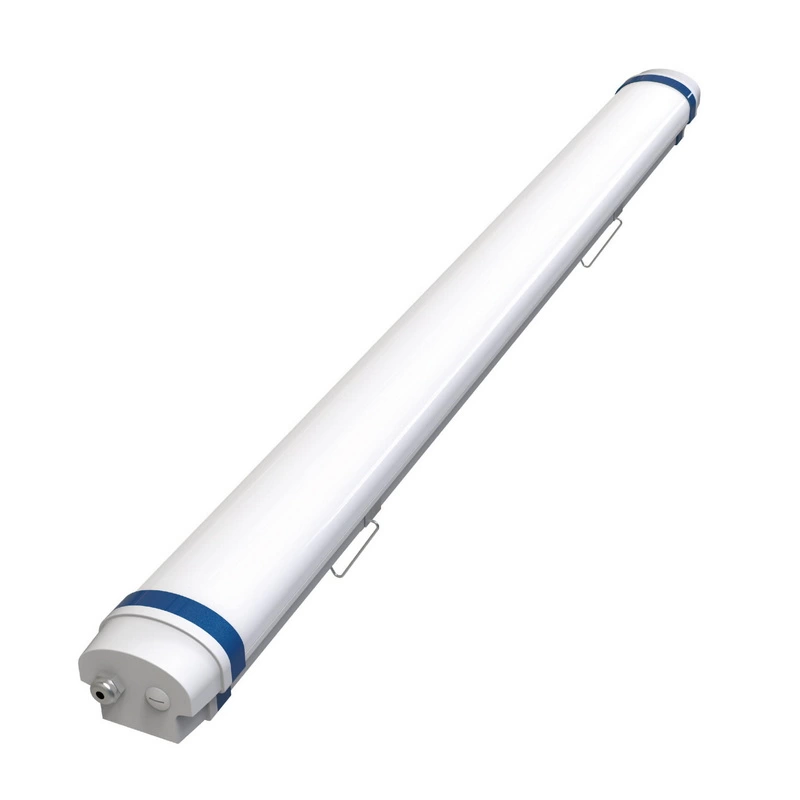

Our vapor tight LED light fixture series has many products, among which “VenusⅠPro” performs particularly well in high temperatures. It can operate normally in 75 ℃ environments. Heat proof are the biggest feature of this light.

-30°C to 75°C operating range,IP66/IK10 protection Dust and water resistance ensure reliability in harsh industrial conditions.
0-10V dimming control Adaptable lighting solutions for enhanced flexibility in a variety of environments.
High-strength aluminum housing Durable design with 4,000 hours of salt spray resistance to ensure long service life.
Safe and flame retardant V0-grade flame retardant PC cover, UV-resistant and anti-glare design , ensure greater safety and durability.

Series	Venus I Pro
Power	40W, 60W, 75W, 100W
Expected Life	Over 50,000 hrs
Rating	IP66/IP69K
Color Rendering Index (CRI)	>80
Operating Temp	-30°C – +75°C
Relative Humidity	0-90% RH
Power Factor	≥95%
Input Line Voltage	220-240 VAC/120-380 VAC
Input Line Frequency	50/60 Hz
LED Chips	OSRAM
DIMMING	0-10V Optional
LED Efficiency	3000K-130 lm/w、4000K-140 lm/w、5000K-150 lm/w、5700K-140 lm/w
Warranty	5-Year
Housing	Extruded Aluminum/PC
Gasketing	Neoprene Rubber
Finish	Protective UV Stabilized Powdercoat 4000 Hour Salt Spray Tested to ASTM B117
Application	High temperature warehouses, steel mills, chemical plants, tunnels, ports, underground garages

vapor tight led light fixture optics

What is a vapor tight led light fixture? Is it the same as a tri-proof light?

The two types of lights do have some overlap in function. Both are waterproof, dustproof and anti-corrosion, and are suitable for harsh environments. However, vapor tight led light fixtures emphasize “sealed waterproof and moisture-proof” characteristics, while tri-proof lights emphasize “comprehensive protection performance”. VenusⅠPro combines the advantages of both and is even better in high temperatures.

Will the lifespan of your high-temperature vapor tight LED light fixture be shortened?

No, we don’t sacrifice light life for high-temperature design. Even in high-temperature environments of 75°C, this Vapor Tight Light Fixture can still achieve a service life of over 50,000 hours.

Can I use other Vapor Tight Light Fixtures instead of “VenusⅠPro” high temperature vapor resistant lighting?

No. Other vapor tight LED light fixtures are prone to rapid light decay, driver burnout, and lifespan reduction in high-temperature environments. The “Venus I Pro” high-temperature vapor tight light fixture utilizes a high-temperature-resistant driver and optimized heat dissipation design, ensuring its use in high-temperature environments.

Do these lights require frequent maintenance?

No. Vapor tight LED fixtures are low-maintenance thanks to their sealed design, long lifespan (50,000+ hours), and resistance to moisture and debris.
