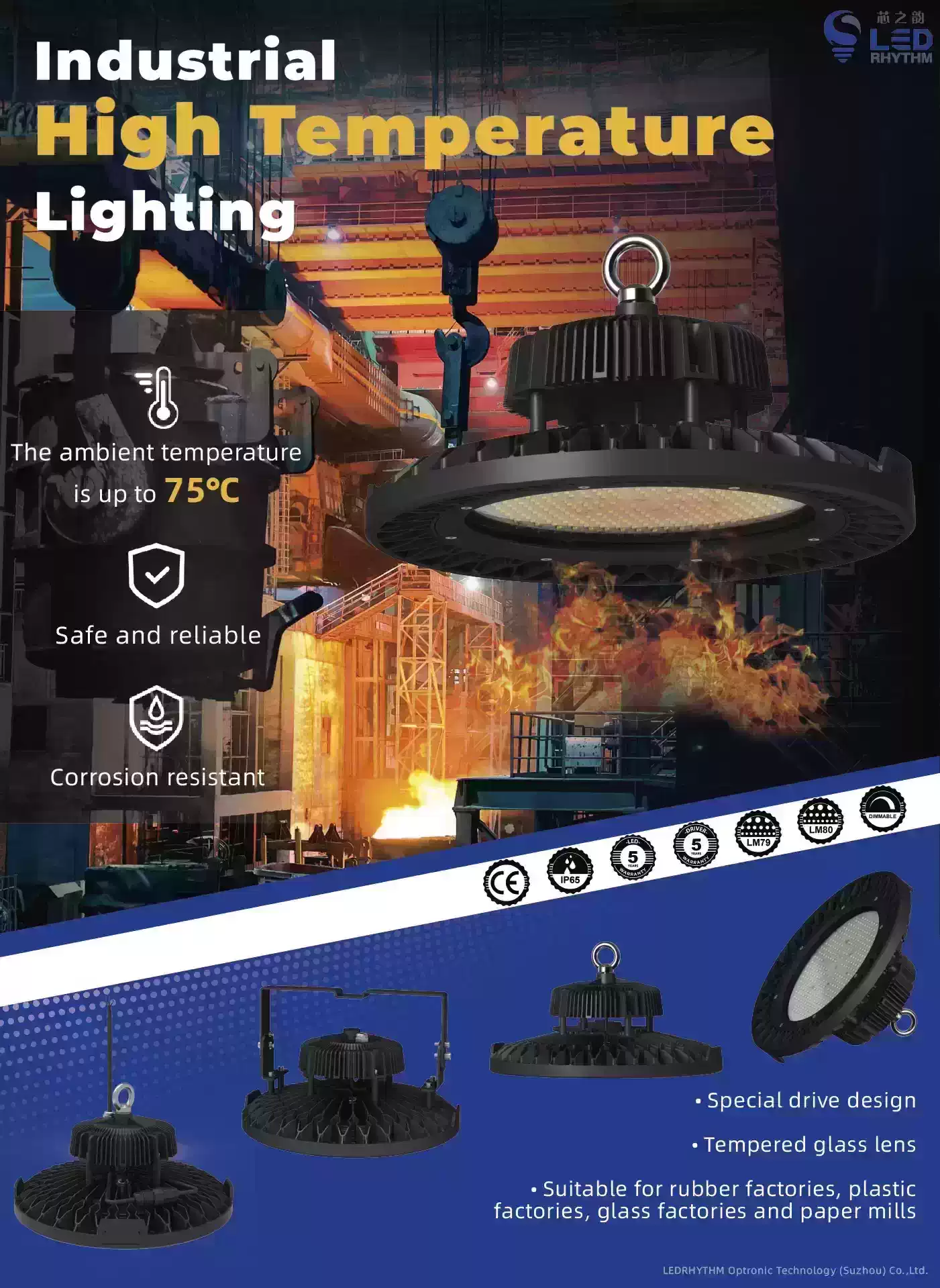

Diamond Industrial LED High Bay Lighting – 75°C High Temp Lights

With ability operate at 75°C 24/7, Diamond Ⅰ Plus high bay high temp led lights, built to meet demands of high ambient temperature. Wide power range available, among which high bay led lights 200w is most commonly used in high temperature. Designed provide reliable lighting in industrial sites with high bay. Diamond Ⅰ Plus high temp high bay lights has lower power consumption, higher output at higher drive current, longer life, higher robustness, smaller size, faster switching, and intelligent dimming.

Product Features
  • No degradation in performance up to 75°C
  • 80W, 100W, 120W, 150W, 180W, 200W, 240W, 300W
  • IP65, has superb resistance to high temperature, corrosion and water
  • Efficient cooling reduces fixture temperature by 40%.
  • Aerospace-grade integrated die-casting, 300% strength increase.

🔔 Ledrhythm products are designed for the global market. Please contact our sales team for certification details.

🔔 Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.

Diamond Ⅰ Plus is an extreme industrial led high bay lights. Because industrial workshop or foundry area may have higher ambient temperatures and more dust and oil particles. Heat generated by the LED and its associated circuitry can damage the LED when operating in a high ambient temperature environment and/or in an enclosure with limited space.Choosing right high temp LED lights is important, there are limited lighting products on the market that can operate continuously in high temperature environments. such as pulp and paper mills, foundries, and glass factories, xcessive temperatures will decrease the lights’ performance and increase their maintenance costs. Diamond Ⅰ Plus and Venus Ⅰ Pro Range of specifically designed for these extreme conditions. The Diamond high bay led lights 200w are suitable most high ceiling workshop lighting.

  • No worries about high temperature : After testing, Diamond I Plus has zero performance degradation at extreme temperatures of up to 75° C, completely solving the challenges of high temperature working environments to lighting equipment and improving reliability by 50% .
  • Extremely reliable : With global certification, it has superb resistance to high temperature, corrosion and water , truly achieving “as reliable as a diamond”. Is a real industrial grade high temp LED lights .
  • Ultimate heat dissipation: Optimized heat conduction path, rapid heat dissipation technology reduces lamp body temperature rise by 40% , even if running for a long time, the performance remains constant and the life span is longer.
  • Unparalleled strength : Made of aviation-grade material and is die-cast in one piece , which increases its strength by 300% . Each lamp is as tough as a diamond, making it a pioneer in protection in the industrial field .
  • Intelligent control of the future : Supports 0-10V dimming technology, brightness can be adjusted on demand, combined with high-performance design, allowing users to enjoy energy saving while also having a personalized light experience.
  • Scene Master : Flexible optical light distribution design can easily cope with complex environments such as warehouses, retail areas, and production lines, injecting intelligent matching into each beam of light to improve production efficiency and space quality.
Series Diamond I Plus
Power 80W , 100W , 120W , 150W , 180W , 200W , 240W , 300W
Expected Life Over 50,000 hrs
Rating IP65
Color Rendering Index (CRI) >70
Operating Temp -30°C – +75°C
Relative Humidity 0-90% RH
Power Factor >95%
Input Line Voltage 100-240/180-528VAC
Input Line Frequency 50/60 Hz
LED Chips OSRAM
DIMMING 0-10V Optional
LED Efficiency – 3000K, 130 lm/w – 4000K, 140 lm/w – 5000K, 140 lm/w – 6500K, 140 lm/w
Warranty 5-Year
Housing Die Cast Aluminum A380 Alloy ADC12
Gasketing Neoprene Rubber
Finish Protective UV Stabilized Powdercoat 4000 Hour Salt Spray Tested to ASTM B117
Application Rubber factory、Steel factory、High temperature places、Production and conference halls、Retail area、Warehouse

industrial led high bay lighting optics

high temp industrial led high bay lighting size

high temp led​ heat resistant light​ high temperature light fixture
Are Diamond Ⅰ Plus safe to use in steel plants or foundries?
Yes. Diamond high bay temp led lights adopts a structure where the power supply and lamp body are separated and made of die-cast aluminum. that ensure safe operation in harsh industrial environments like steel mills, foundries, and boiler rooms.
Will long-term use in a high temperature environment affect the life of the lights?
Normally, yes — However, our high temp led lights have excellent heat dissipation performance and have undergone rigorous high temperature and other tests, and can maintain a long service life even in extreme high temperatures. even under extreme heat. Many models can last over 50,000 hours.
How do I select the right high temp industrial led high bay lighting for my facility?
Consider key factors like maximum ambient temperature, mounting height, required brightness (lumens), IP rating, and installation type. Our team can help you choose the ideal model based on your specific environment.
How many lumens are high bay led lights 200W?
We have many high bay series, this 200W light that can withstand 75℃ reaches 28,000 lumens. There will be no light decay during operation.
