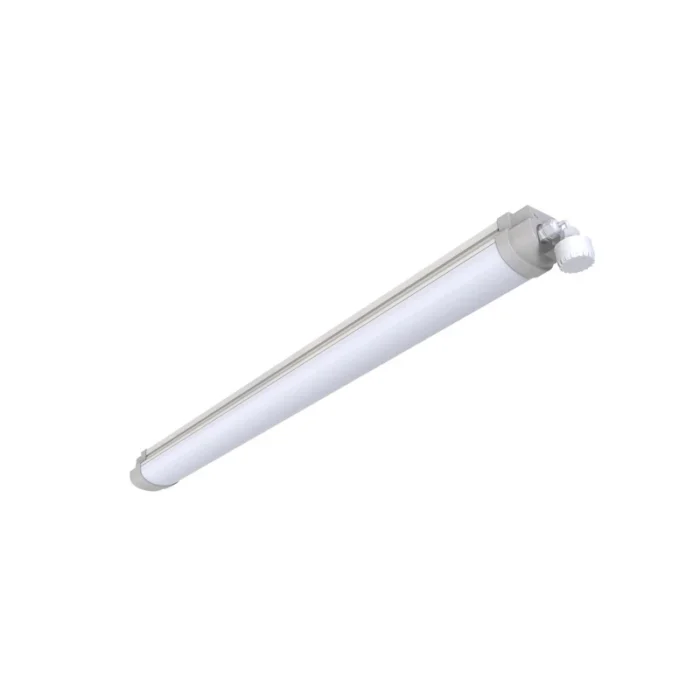

2/4/5ft LED Vapor Proof Light Fixture With Motion Sensor
“Venus I” is a better vapor proof LED light fixture. Not only does it have an IP66/IP69K rating, and the standard PC cover is V0 flame-retardant, IK10 shock-resistant, and corrosion-resistant. Available in three lengths: 2/4/5ft. It boasts high luminous efficacy of 150 lm/W and maximum power of 150W. Combined with a motion sensor, it’s very suitable for harsh industrial environments such as factories, cold storages, ports, etc. There is also an upgraded version “VenusⅠPro” that can withstand temperatures of 75°C.
Product Features
- Luminous efficiency 150lm/W
- 40W, 60W, 80W, 100W, 120W, 150W
- IP66/IP69K protection level
- IK10 shock-resistant
- Uniform light without ghosting and glare

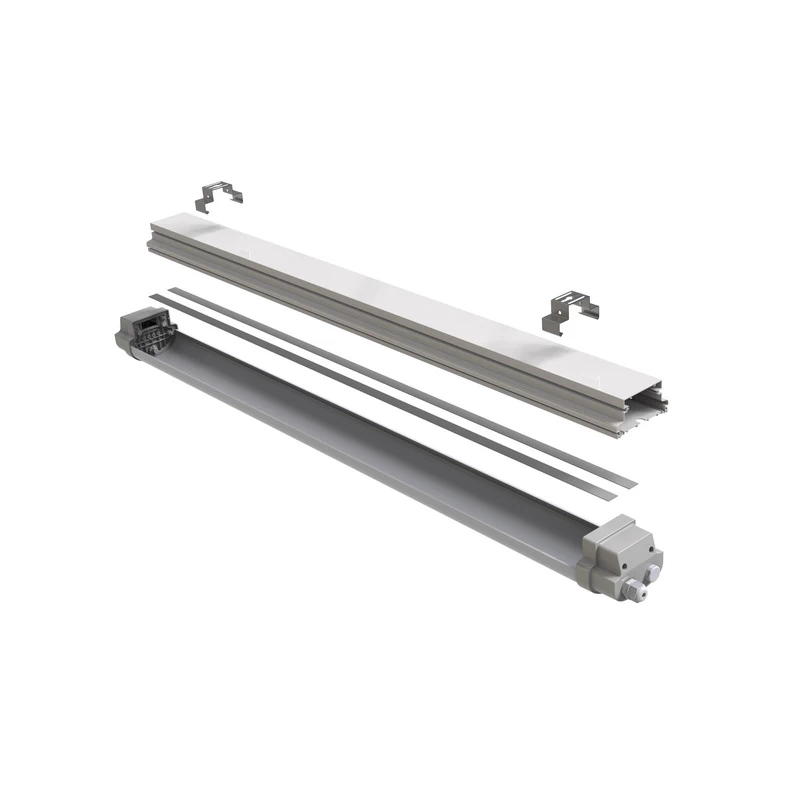

- PC shell & extruded aluminum alloy back cover
🔔 Ledrhythm products are designed for the global market. Please contact our sales team for certification details.
🔔 Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
In harsh industrial environments, choosing LED vapor proof light fixture is undoubtedly the right decision, as they are designed to relieve you from worrying about lighting effects and maintenance. “VenusⅠ” can also be equipped with motion sensors to achieve smarter and energy-saving lighting.

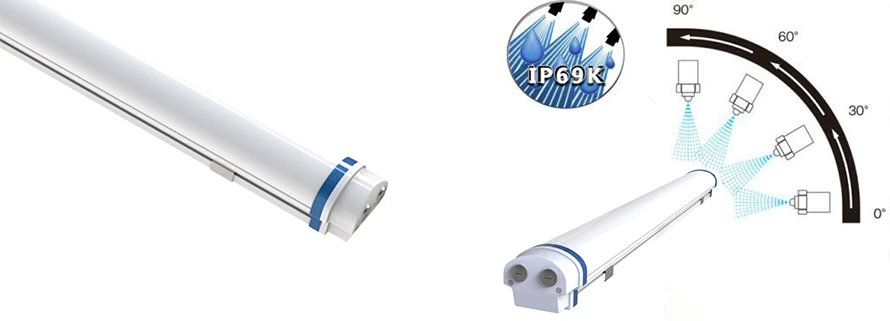

IP69K Waterproof level
The current IP69K highest waterproof rating can withstand the rigorous high-pressure, high-temperature flushing procedure. At the same time, the smooth surface and seamless structure of the vapor proof light fixture effectively reduce the possibility of entering by water and dust. This lighting fixtureis especially needed in industries such as food processing and poultry farming.

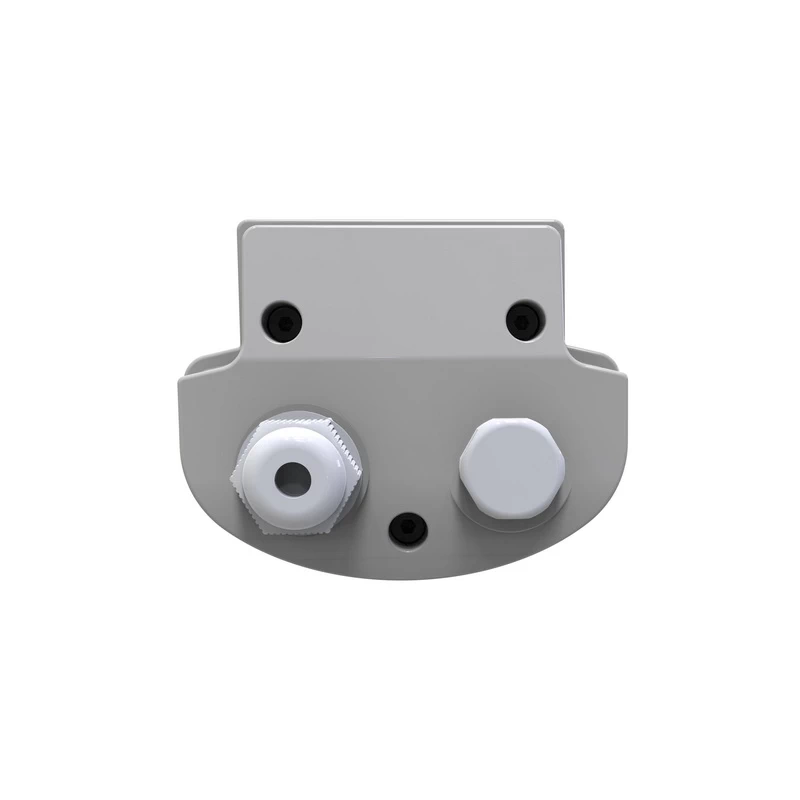

Quick Connection
In order to improve the installation efficiency of engineering projects, our lights design adopts the optimal wiring method to make the installation faster. Lighting fixtures can be connected in series, and the in-line connector makes the wiring more convenient and firm for clients.
Anti-glare
The flame retardant rating of the plastic parts used in the PC structure of this LED vapor proof light fixture reaches the highest V0 grade, and the light has an optimized design of advanced lighting optics principles to achieve the effect of uniform light without ghosting and glare. It is suitable for factory production areas, schools, warehouses, subways, corridors and stairwells.
Anti-seismic function
Adopts strong PC and extruded aluminum materials housing so as to reach IK10 protectionlevel and ensure long-term safe operation in multi-shock, multi-vibration environments.
Installation
Support both Hoisting and ceiling-mounted installation methods.
| Series | Venus I |
| Power | 40W, 60W, 80W, 100W, 120W, 150W |
| Expected Life | Over 50,000 hrs |
| Rating | IP66/IP69K |
| Color Rendering Index (CRI) | >80 |
| Operating Temp | -30°C – +40°C |
| Relative Humidity | 0-90% RH |
| Power Factor | >95% |
| Input Line Voltage | 220-240 VAC/120-277VAC |
| Input Line Frequency | 50/60 Hz |
| LED Chips | OSRAM |
| DIMMING | 0-10V Optional |
| LED Efficiency | 3000K-130 lm/w、4000K-140 lm/w、5000K-150 lm/w、5700K-140 lm/w |
| Warranty | 5-Year |
| Housing | Extruded Aluminum/PC |
| Gasketing | Neoprene Rubber |
| Finish | Protective UV Stabilized Powdercoat 4000 Hour Salt Spray Tested to ASTM B117 |
| Application | Warehouse、Cold storage、Retail areas 、Production and assembly halls |
