LED Flood Lights
LED flood lights are a widely used type in modern outdoor lighting. They emit very broad and uniform light. Our LED flood lights are built to withstand harsh industrial or weather conditions. They are used to illuminate any large areas indoors or outdoors, has both ample power output and extremely high stability. We also support customized lighting designs and solutions for your projects.

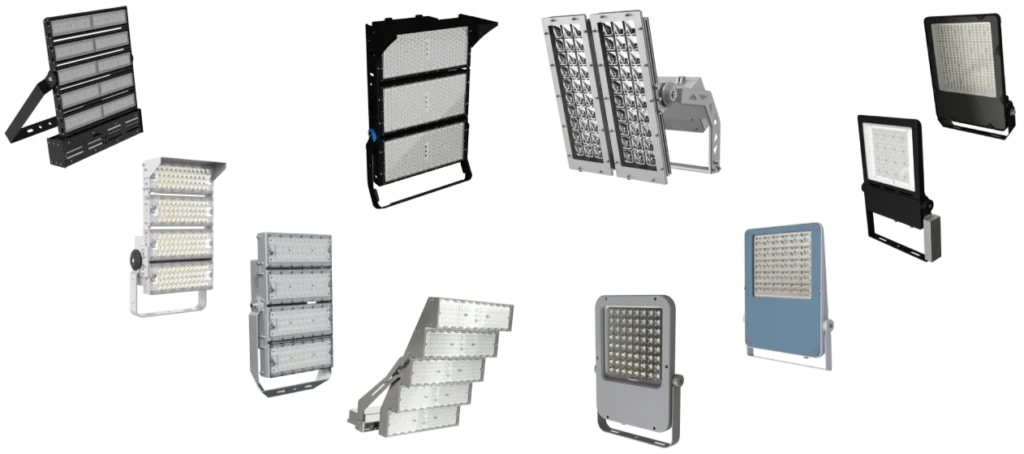

LEDRHYTHM - LED Flood Lights Manufacturer in China
LEDRHYTHM LED flood lights are undoubtedly the main force of modern outdoor and large-area lighting. They are all made of one-piece die-cast aluminum alloy with protection level of IP65/IP66 and can easily cope with outdoor environments. We offer slim or modular LED floodlights with power ranging from 30W to 1500W, can achieving from wall lighting to high mast lighting. The luminous efficacy is 150lm/W or even higher, ensure high efficiency and energy saving.

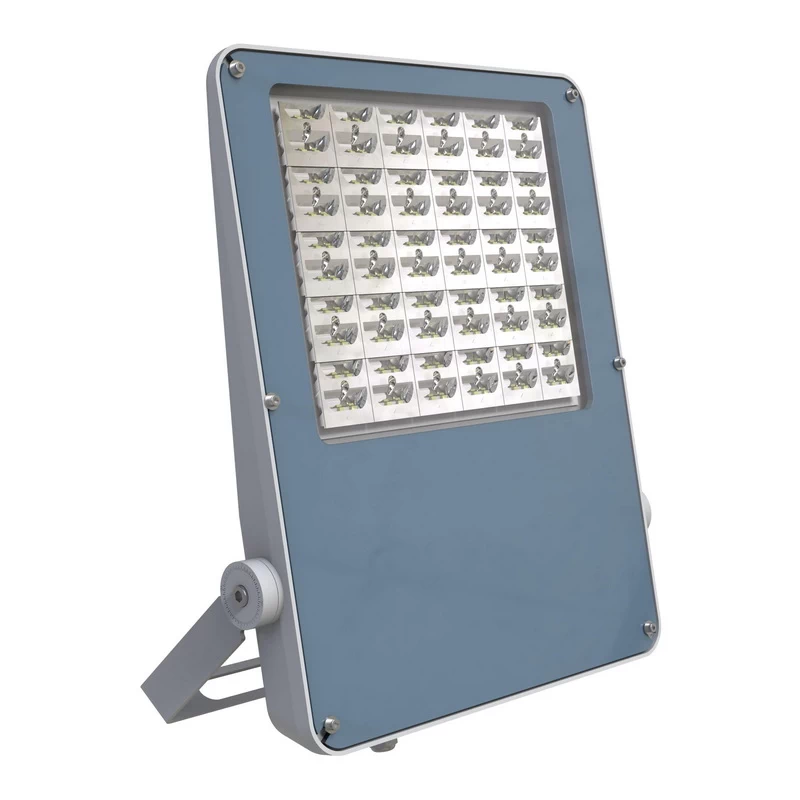

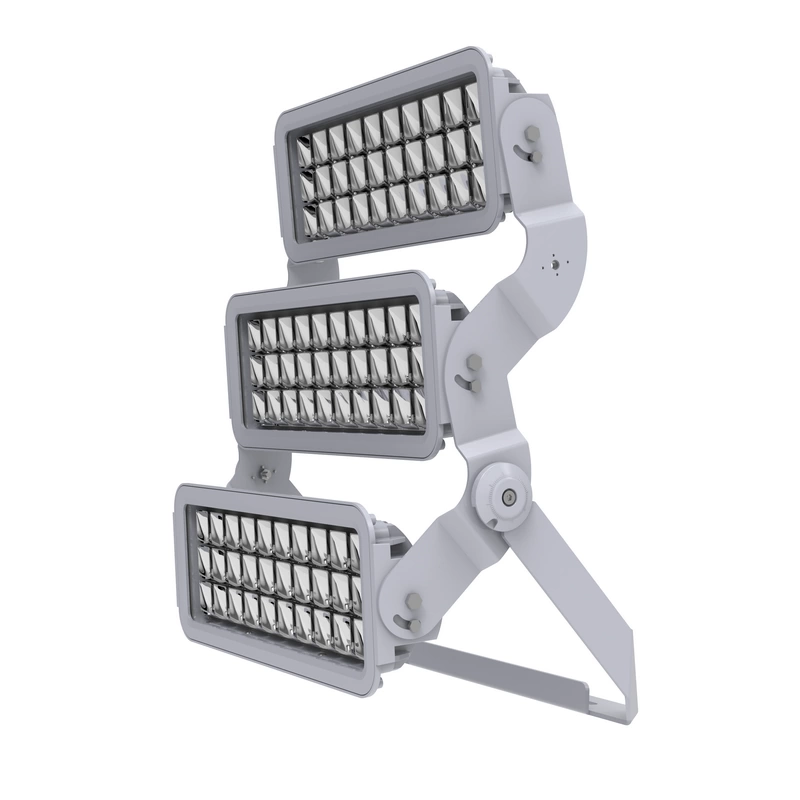

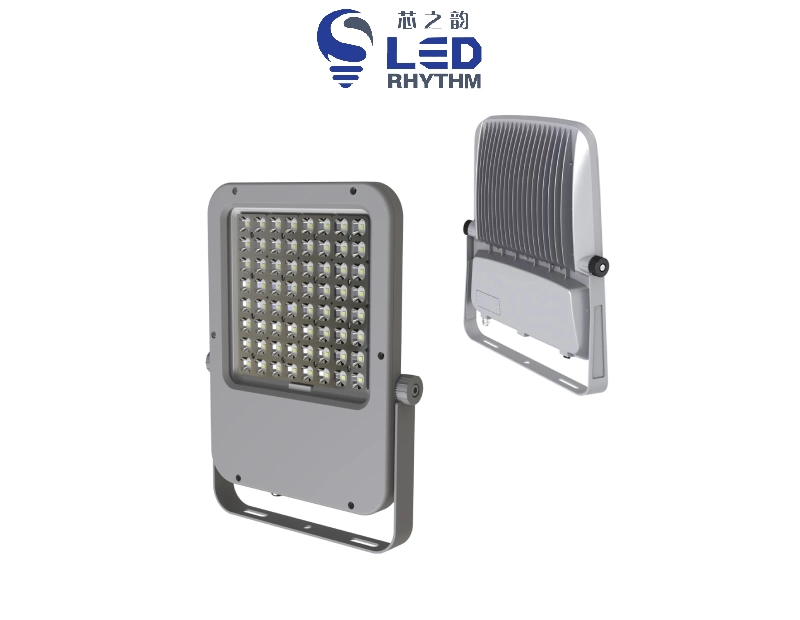

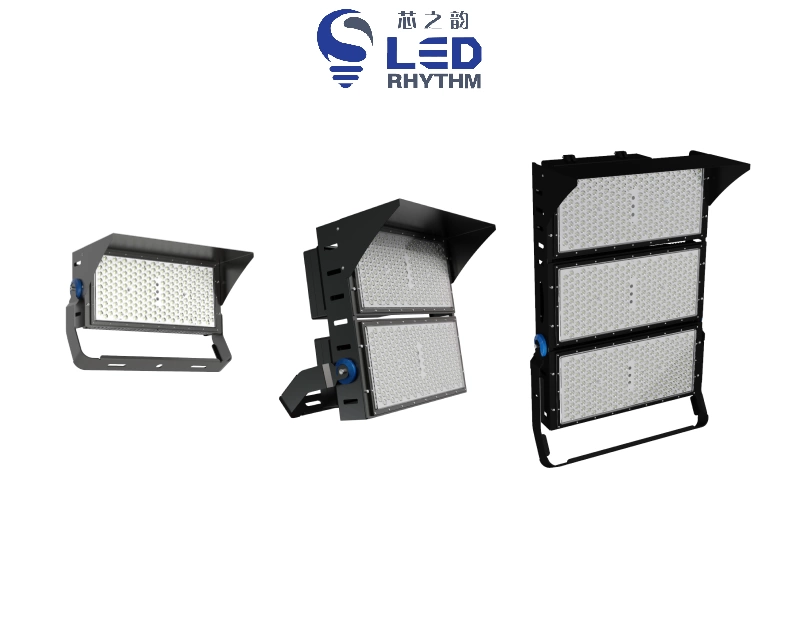

| Specification | Slim LED Flood Light | Modular LED Flood Light |
|---|---|---|
| Design | Slim, all-in-one | Multiple modules stacked |
| Power Range | 30W – 400W | 60W – 1500W |
| Installation | Wall / building / ground / pole | High mast / building / wall |
| Beam Angles | 45°–120° | 10°–90° |
| Heat Dissipation | Large area die-cast aluminum heat sink | Large independent cooling fins |
This means that we can meet your lighting needs, from small gardens to large football fields. In addition, we also offer 65℃ high temperature industrial flood light, which can operate normally even in heat factory. Whether you need flood lighting for sports, ports, public areas or industrial areas, we can customize a solution for you.
As professional LED flood lighting manufacturer, we employ a variety of sophisticated optical designs and light distribution to minimize glare, improve uniformity, and reduce light pollution in outdoor environments, ensuring efficient and comfortable lighting experience. Color rendering index (CRI) of 90 or higher is supported, its suitable for high-requirement sports lighting. We are also equipped with intelligent control systems, such as 0-10V dimming, DMX, and DALI, to help you manage your lights.
Commercial and Industrial Grade LED Flood Lights
Our LED floodlight series are high-performance products designed for industrial and commercial use, not low-power types for home use. They excel in total luminous flux output, protection performance, and stability.
- Optics: Whether is long-distance illumination of stadium or uniform wall washing of building, can provide professional designs.
- Low Maintenance: Meets L70/L80 standards, service life over 50,000 hours. Virtually no maintenance during their lifespan.
- Protection: Industrial-grade products feature die-cast aluminum alloy shells and anti-corrosion coatings, are waterproof to IP65-IP66, and have IK08 shock and surge protection. This is crucial for long-term stability in outdoor environments.
- Luminous Efficiency: This is advantage of LED technology. Compared to traditional lighting, while maintaining high power, our efficiency still reaches over 150 lm/W, can expected to save 60-70% of energy and costs.

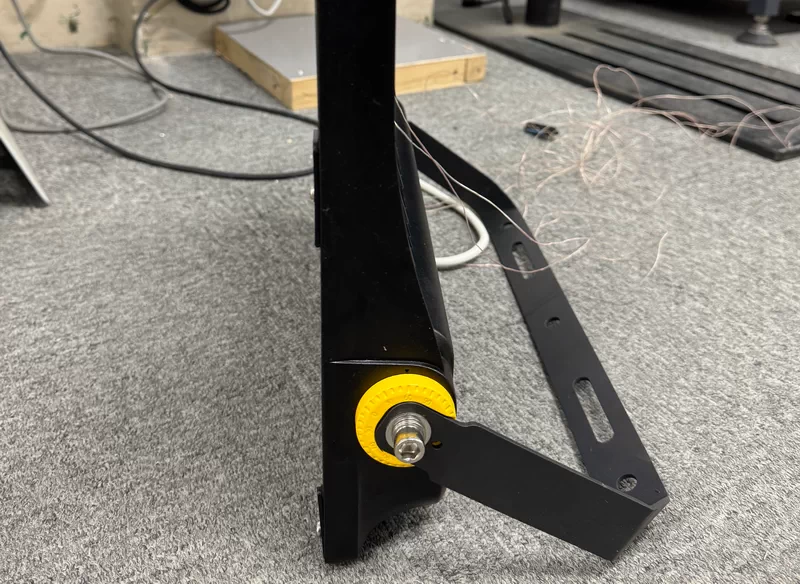

- Flexible Installation: The standard U-shaped bracket supports ground mounting, wall mounting, pole arm mounting, hanging mounting, and column mounting, and the bracket angle is adjustable for precise light distribution.

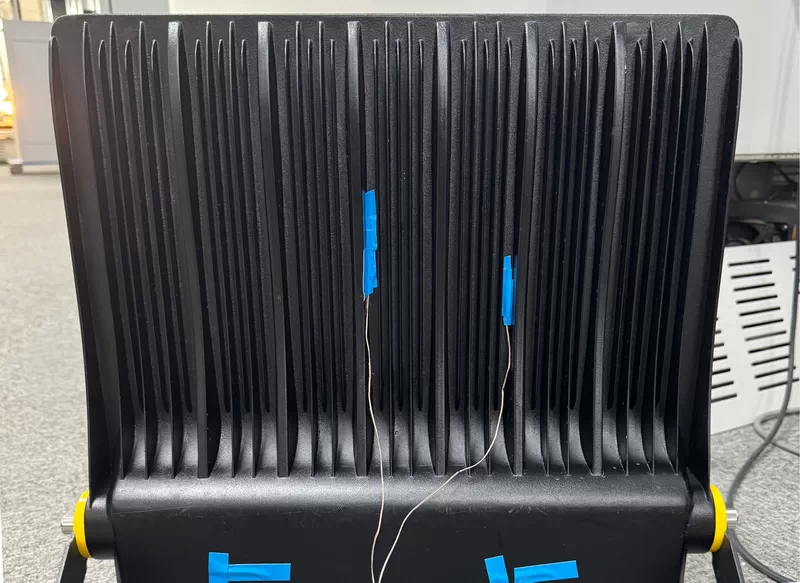

- Heat Dissipation: High thermal conductivity die-cast aluminum quickly dissipates heat, with numerous heat sinks on fixture back structure. Alternatively, modular designs can further enhance heat dissipation efficiency.
- Light: LED flood lights CCT selection from 3000-6000K, and light quality is uniform and stable, flicker-free, shadow-free.

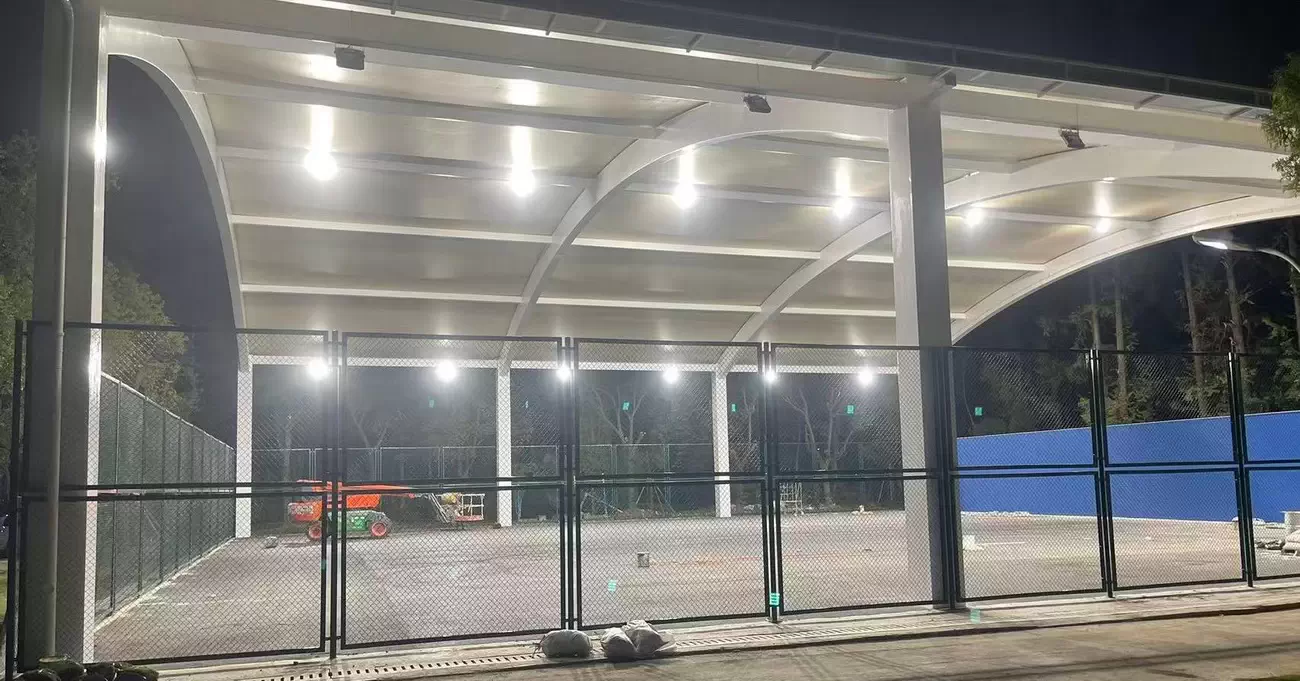

- Intelligent Control: Supports 0-10V/DALI dimming and can integrate automatic sensing and batch control.
Cost Benefits
With high luminous efficacy, ultra-long lifespan, and maintenance-free operation, our LED flood lights offer significant cost advantages over the next 8–10 years, reducing costs across multiple dimensions including energy, labor, and operations.
- Achieves higher brightness with lower power consumption, saving energy costs.
- Virtually no maintenance, saving substantial labor and equipment costs.
- Achieving the same illuminance with fewer flood lights saves on procurement and installation costs.
- Further energy cost reductions of 10%–30% are achieved through dimming and automatic sensing.
Applications
LEDRHYTHM LED flood lights have very wide range of applications, including various industrial and commercial areas, from small parks to large football fields and parking lots lighting, as well as high-temperature areas indoors or outdoors. Provide safe and comfortable lighting in parks and squares; At intersections, ensuring pedestrian and vehicle safety; In stadiums and parking lots, provide bright, even light; In ports, docks and large industrial areas, can resistant to moisture and corrosion from seawater; In high-temperature areas, can withstands ambient temperatures up to 65°C and will not flicker or burn out due to overheating.
We recommend using 5000K LED flood lights, as the white light is suitable for most industrial and commercial applications. Furthermore, 5000K offers better color rendering and produces the most natural white light. However, for areas with frequent animal activity or where relaxing, warm yellow light of 3000K or lower would be better.
| Application | Typical Power Range | Recommended CCT |
|---|---|---|
| Gardens & Parks | 30W – 150W | 3000K – 4000K |
| Public Squares & Plazas | 100W – 400W | 4000K – 5000K |
| Road Intersections | 100W – 300W | 3000K – 5000K |
| Stadiums & Sports Fields | 600W – 1500W | 5000K – 6500K |
| Parking Lots | 50W – 200W | 4000K – 5000K |
| Ports & Industrial Yards | 400W – 1500W | 5000K – 6000K |
| General Industrial Areas | 150W – 600W | 5000K |
| High-Temperature Environments | 100W – 200W | 1800K – 3000K |
Beam Angle
In various LED flood lighting, the most important yet most difficult to understand aspect is the beam angle. Because outdoor installation heights are highly variable and different areas need to be covered, LEDRHYTHM offers a variety of beam angles, from narrow to wide, ensuring consistently uniform light without dark spots or spillover.

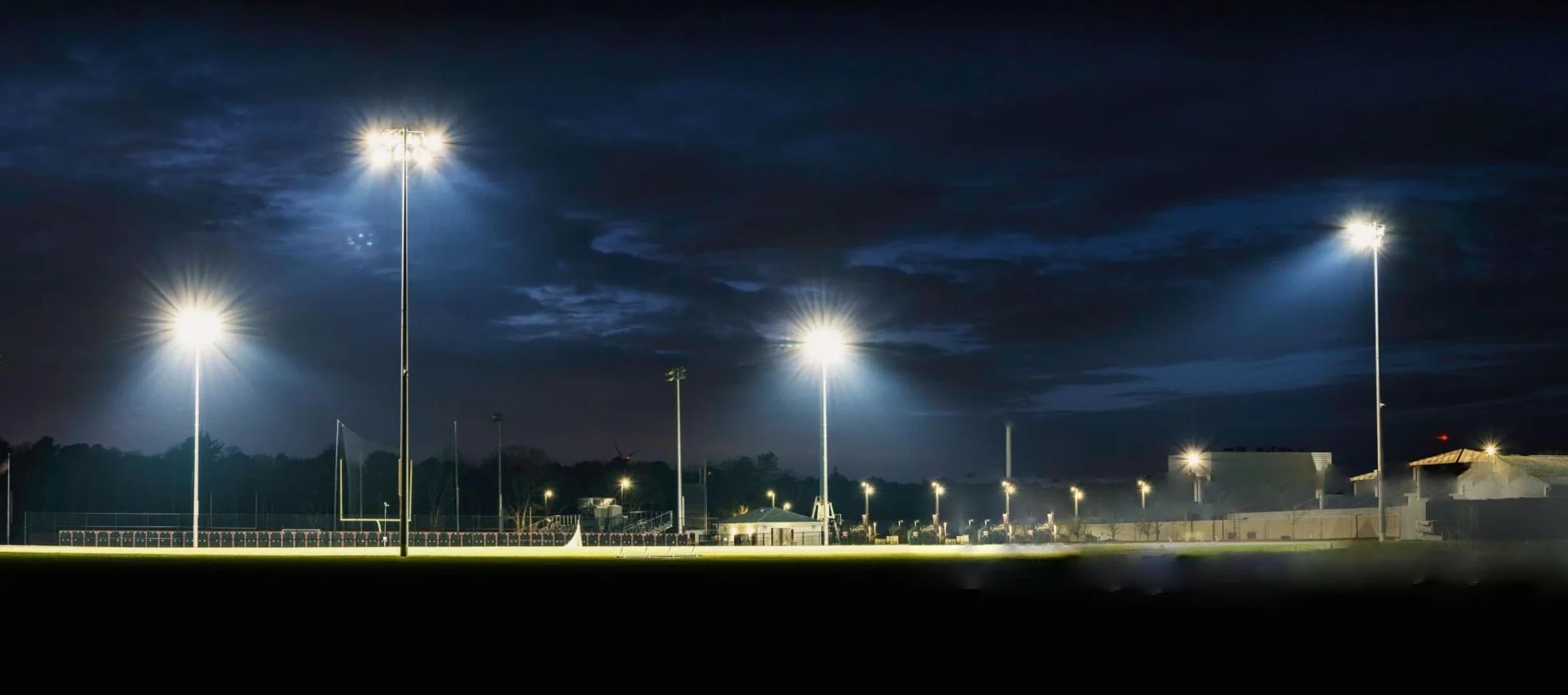

Narrow beams (10°–45°) are typically used for high-mast flood lighting for long-distance illumination, such as in football stadiums, ports, and airports. They offer stronger light penetration and longer illumination distance, reducing the number of light poles required. Medium beam angles(60°–90°) balance coverage and illuminance and are most commonly used in outdoor area lighting. For applications with lower installation heights or where wider coverage is desired, wide-angle beams (90°–120°) provide uniform illuminance, reduce shadows, and improve overall visibility.
In short, the beam angle and installation height of outdoor LED floodlights are closely related. Choosing the appropriate beam angle can significantly improve lighting efficiency, reduce the number of fixture, lower energy consumption, and achieve more uniform coverage. See more information about beam angle.
Quick Installation
LED flood lights can also be used for some indoor industrial or sports lighting, so installation should not be limited to outdoor light poles. We standard with U-shaped adjustable bracket, which can be installed in various ways to adapt to different practical applications. Learn more about outdoor installation methods.
- Ground Mounting: Fixture is directly fixed to the ground, with the light-emitting surface facing upwards.
- Wall mounting: Fix the bracket to the wall, and adjust the angle to achieve side lighting.
- Building/Structure Mounting: Can be installed on eaves, beams, columns, or billboard structures.
- Pole Mounting: Most widely used, supports round poles, square poles, and horizontal arm light poles.
Replacing old lighting is also simple. Besides flexible installation, LEDRHYTHM flood lighting are also compatible with voltages ranging from commercial to industrial projects. Supporting voltage selection from 100V to 480V, installation can be done directly without changing the voltage system. And can also be integrated with batch control, dimming, and sensing systems.
If upgrading from metal halide or sodium lamp systems to LED flood lights, but the outdoor environment is complex, so extra care needs to be taken during the replacement process. Achieving the same or better illuminance is only the beginning.
- Old ballasts cannot be used directly. LED flood lights are used constant current drives and must be connected to stable power.
- The load-bearing capacity and safety structure of the old installation location and old pole need to be confirmed.
- Perform lighting simulation before installation to ensure successful installation on the first attempt.
How to Choose the Right Wattage?
This is a complex and specialized issue, especially for large-scale outdoor flood lighting. Right wattage will achieve just the lighting needs while minimizing energy costs. Otherwise, it will lead to insufficient brightness or energy waste. Furthermore, wattage selection varies depending on luminous efficiency. Our LED flood lights generally exceed 150lm/W, making them brighter than our competitors at the same wattage. Here are some common examples:
- 30W–100W: Building exteriors, courtyards, garage facades
- 100W–200W: Warehouses, parking lots, tennis courts, billboards, commercial walkways
- 200W–500W: Construction sites, large plazas, basketball courts, logistics parks, intersections
- 500W–1500W: Stadiums, high mast lighting, ports, airports, mining areas
Installation height will affect the actual illuminance. In the same area, the higher the installation height, the higher the power required to ensure sufficient brightness. Conversely, lower installation height may result in glare.
If you need to upgrade from traditional lighting, such as metal halide lamps, to LED flood lights, you can usually choose based on the equivalent power. This allows you to achieve the same or even higher brightness with lower power.
- 400W MH ≈ 150W–200W LED
- 1000W MH ≈ 300W–600W LED
- 2000W MH ≈ 800W–1200W LED
At LEDRHYTHM, we offer free lighting design services. These include illuminance simulation (DIALux), recommended wattage, comparison of different wattages and fixtures quantities, and optimal solutions for low-cost or energy-saving goals. Simply tell us your site size, installation height, and required brightness.
Quality Assurance
All our LED lighting fixtures have passed numerous rigorous tests and international certifications, meeting the safety regulations of various countries worldwide and ensuring safety while providing high-performance lighting. Examples include IP66, IK08, UL, and CE. All key components, including LED chips, drivers, and waterproof connectors, are sourced from well-known brand supply chains, ensuring the overall safety and reliability of the lighting system.
All LED flood lights come with 5-year warranty, providing you with complete and reliable pre-sales and after-sales service.
LED Flood Lights vs Spot Lights
Differences between LED flood lights and spotlights lie in their beam angles and application scenarios. Learn more about each.
- Spot lights have a narrow beam angle (10°–45°) and provide sharp edges, making them suitable for accent lighting, such as sculptures and stage lights.
- Although floodlights have beam angles ranging from narrow to wide, they are installed at different heights, all for the purpose of illuminating large areas.
How effective are the waterproof of LED flood lights?
LED flood lights are most commonly used in outdoor environments and must be able to withstand the erosion of rain. To ensure long-term reliability lighting, our waterproof rating reaches IP66, using silicone sealing rings and double-layer waterproof structure to effectively block rain, moisture, and dust. This means it can withstand higher intensity jets of water, making it suitable for harsh environments with heavy rain, sea winds, and dust.
How to avoid light pollution caused by outdoor LED flood lights?
The key to avoiding light pollution is not to reduce brightness, but to ensure that light only shines on the areas that need to be illuminated. The essence of light pollution from outdoor commercial LED floodlights is light leakage, therefore solutions must address three aspects: optical design, installation angle, and dimming.
- Narrow-to-wide beam angle options, such as 15°/30°/60°/90°/120°, control the beam to appear only in the desired area.
- By using sunshade to block the upper part of the light, the amount of light spilling out into distant areas is reduced.
- Flood lights must not be pointed directly into the sky; they should be installed at precise downward tilt angle.
- Reducing light brightness to 30% during less important periods can reduce overall light pollution.
What smart controls do industrial and commercial LED flood lights support?
Smart control systems can be more energy-efficient and conveniently automated in outdoor lighting. Our LED flood lights support 0-10V dimmable, maintaining full brightness during critical periods to improve visibility and safety, while reducing brightness or even turning off during periods of low lighting demand. Automatic dimming can be achieved by linking with light controllers or sensors. Equipped with sensors supporting motion or microwave sensing, they effectively save energy. Also support from dust to dawn LED flood lights, automatically switching on and off daily based on light controller sensors, requiring no manual operation.
Can outdoor flood lighting realize the "Darksky" concept?
Professionally designed outdoor LED flood lights can fully realize the Darksky concept, with the key being optics and color temperature. Our precise and soft light effectively reduces unwanted light scattering into the sky and is animal-friendly, minimizing ecological disturbance. Using anti-glare lenses or secondary light distribution, and offering variety of beam angles from narrow to wide to suit different applications, it reduces sky diffused light and improves utilization. Combined with grilles and sunshades, this results in softer light distribution and controls glare.
Color temperatures below 3000K contain less blue light. Our LED flood lights be designed to low as 1800K, with higher proportion of red and yellow light, so recommend choosing 1800K-2700K, which is more friendly to animals, plants and insects at night.
How well do LED as replacement for halogen flood lights?
This is undoubtedly the most correct choice, and more efficient, economical, and safe upgrade solution. Modern industrial-grade LED flood lights not only achieve one-to-one replacement, but also bring significant upgrades in light quality, energy consumption, lifespan, and safety, resulting in substantial reduction in lighting operating costs.
- 70–85% energy savings: Traditional halogen flood lights typically only 15–25 lm/W, while LED can over 130–160 lm/W.
- Lifespan extended by 10–20 times: Halogen generally lifespan only 2,000 hours, requiring frequent replacements.
- Higher heat dissipation efficiency: LEDs utilize aluminum heat sink structure and heat-resistant component design, making them safer and able to withstand harsh weather conditions.
- Easy replacement: Supports wide voltage input and highly flexible adjustable brackets or threaded mounting.

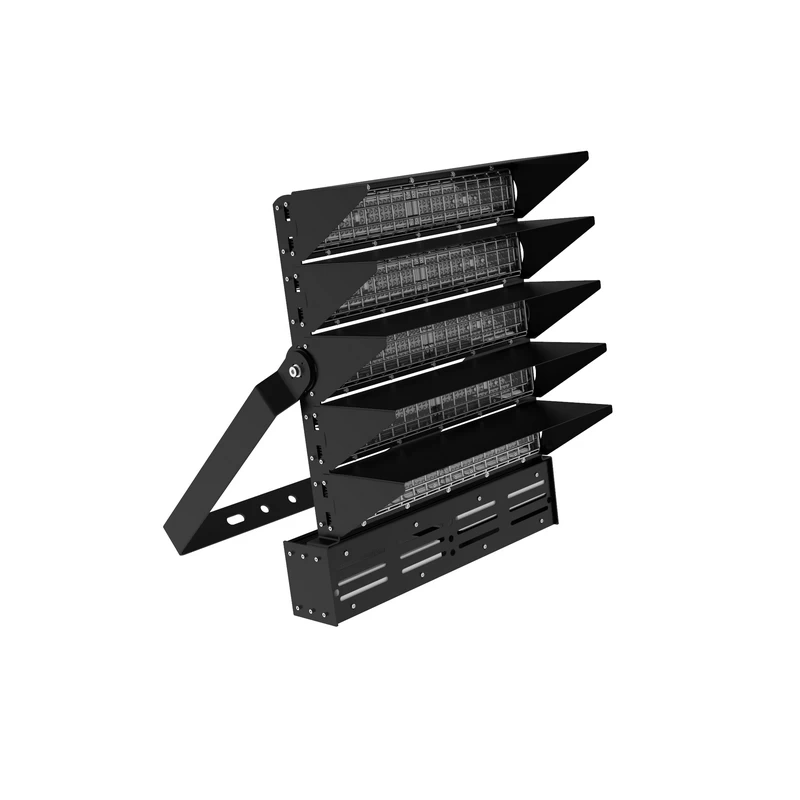

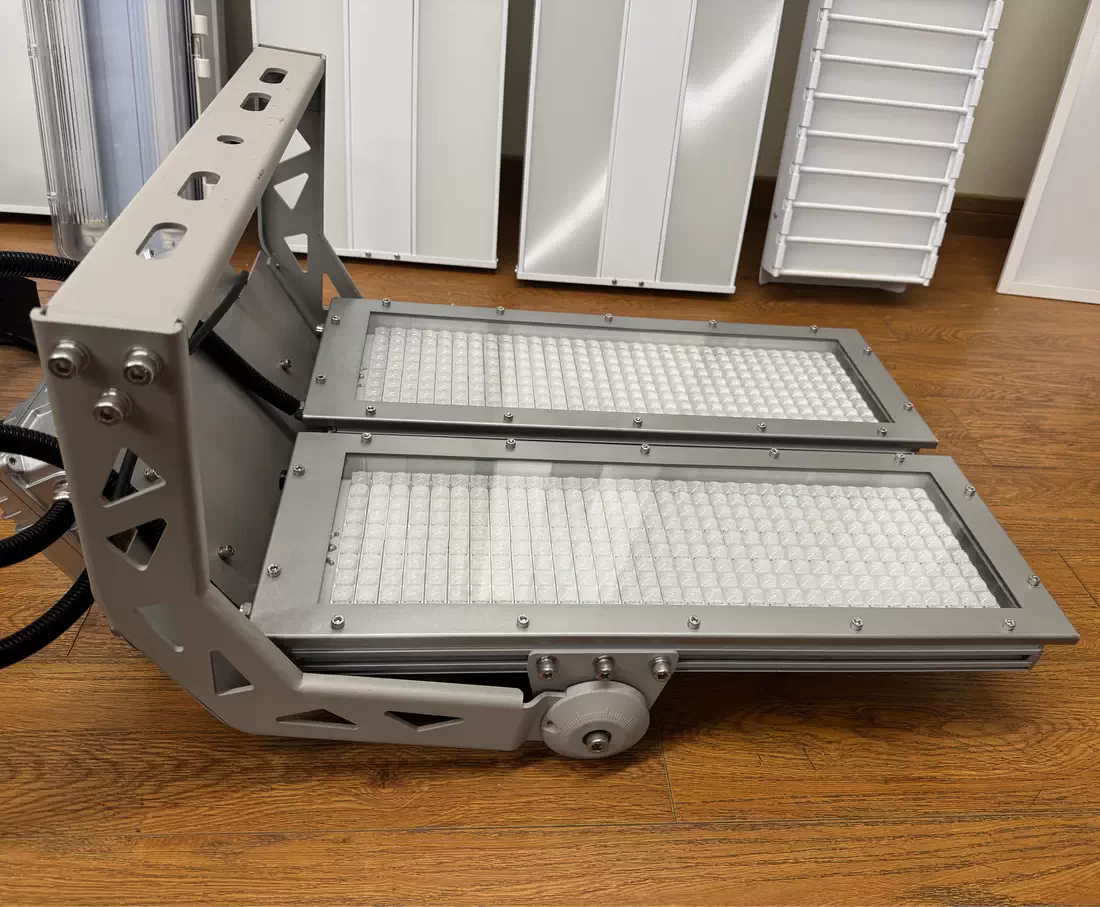

Do your LED flood lights meet stadium lighting standards?
Stadium lighting has extremely high requirements for brightness, color rendering, projection distance, and overall uniformity, so not all LED flood lights can meet these. At LEDRHYTHM, we can fully satisfy lighting standards, even competition-level standards.
- High power and high brightness output: Maximum power 1500W, a single LED flood light can output nearly 250,000 lumens. Can cover larger stadiums at higher installation heights.
- High color temperature: Supporting 5000K-6500K, providing brighter and clearer motion vision, while maintaining stable color temperature even at high power output.
- High Color Rendering: Color rendering index greater than 90, even reaching 95. Can faithfully and naturally reproduce every color, meeting the needs of broadcasting.
- Professional Optics: Eliminating shadows and dark areas. Ensuring highly uniform lighting throughout the field while avoiding glare for athletes, referees, and spectators.
Which is the best LED flood light?
Each of our LED flood lights is designed for specific functional needs and is suitable for different scenarios. There’s no single best fixture, only the one that best suits your lighting needs and environment. Contact us or read articles to help you choose.
What is the luminous flux of the brightest outdoor flood lights?
Our brightest industrial grade LED flood light have 225,000lm luminous flux and are designed for large stadiums. Mounted on tall poles, they provide exceptionally bright and even lighting across the pitch.
Can LED flood lights be used in high temperature industrial areas?
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Yes, our “Slim III Pro” operates stably in ambient temperatures up to 65°C, has undergone more than 5,000 hours of high-temperature testing and boasts an IP66 rating, meaning it can be used both indoors and outdoors. Key features include:
- Die-cast aluminum construction for efficient heat dissipation
- More heat resistant LED chips and driver, silicon circuits, glass lenses
- Driver power separated from the light body

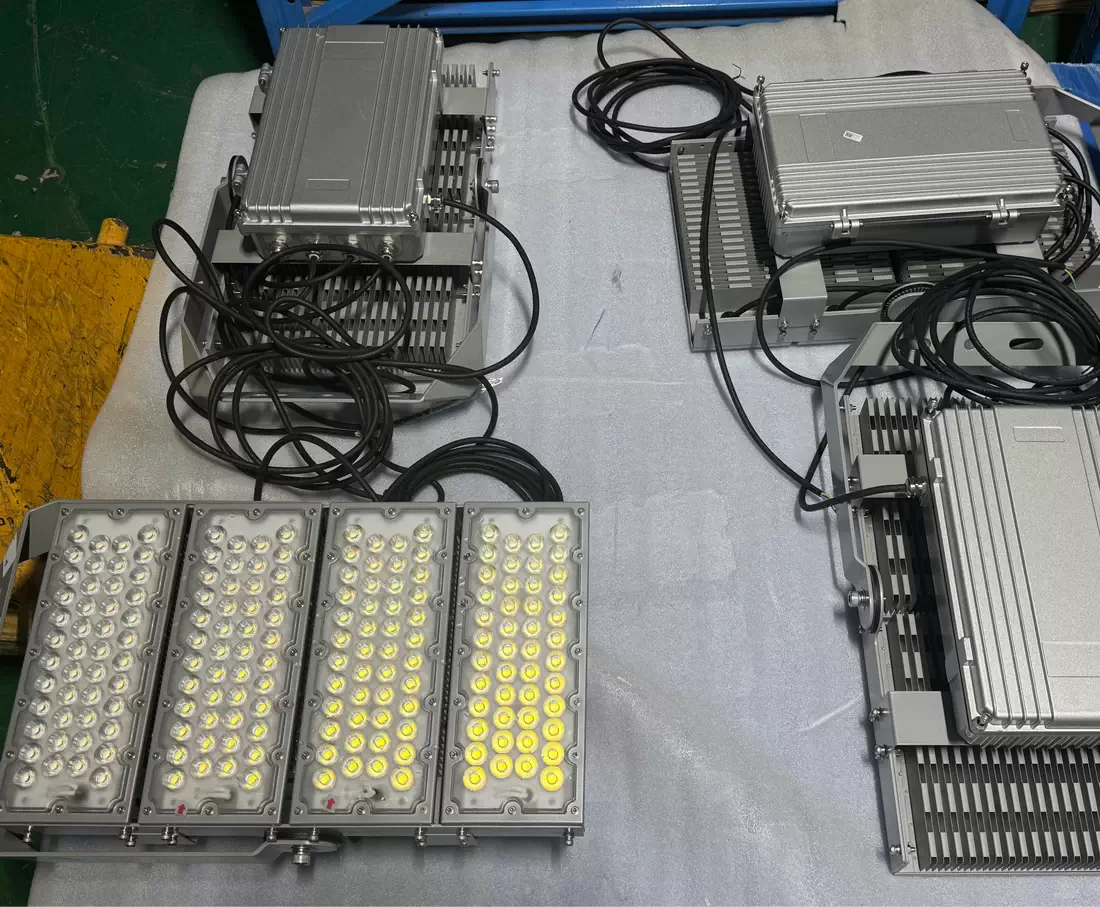

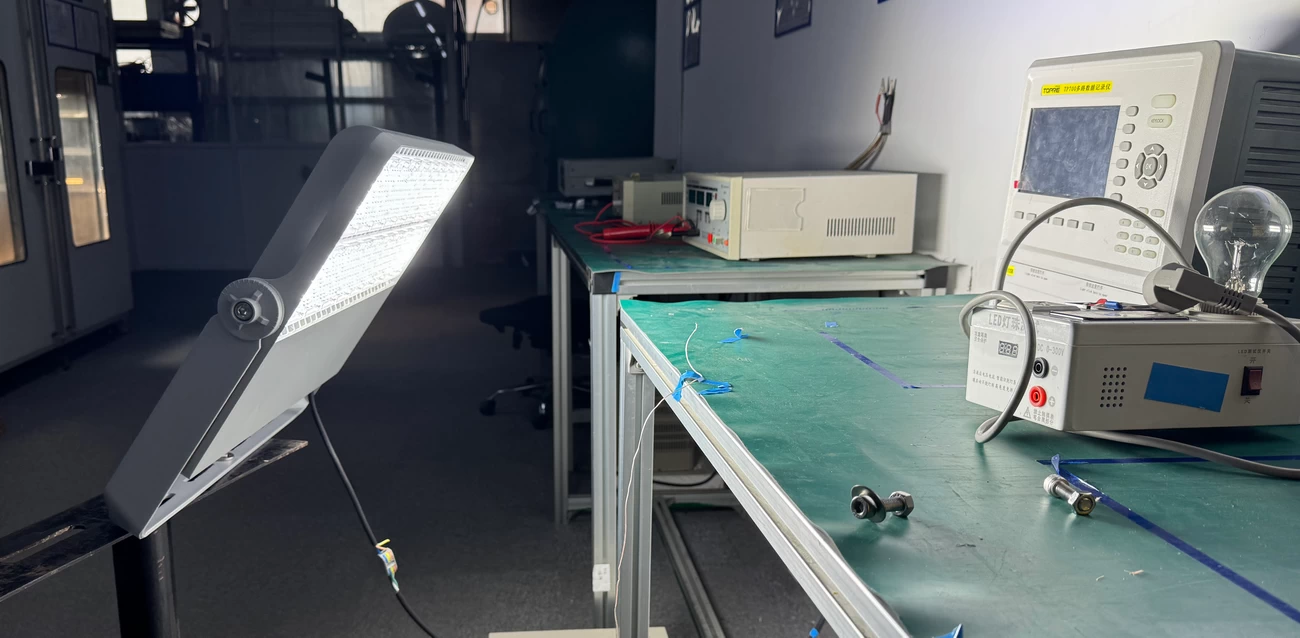

Product Testing

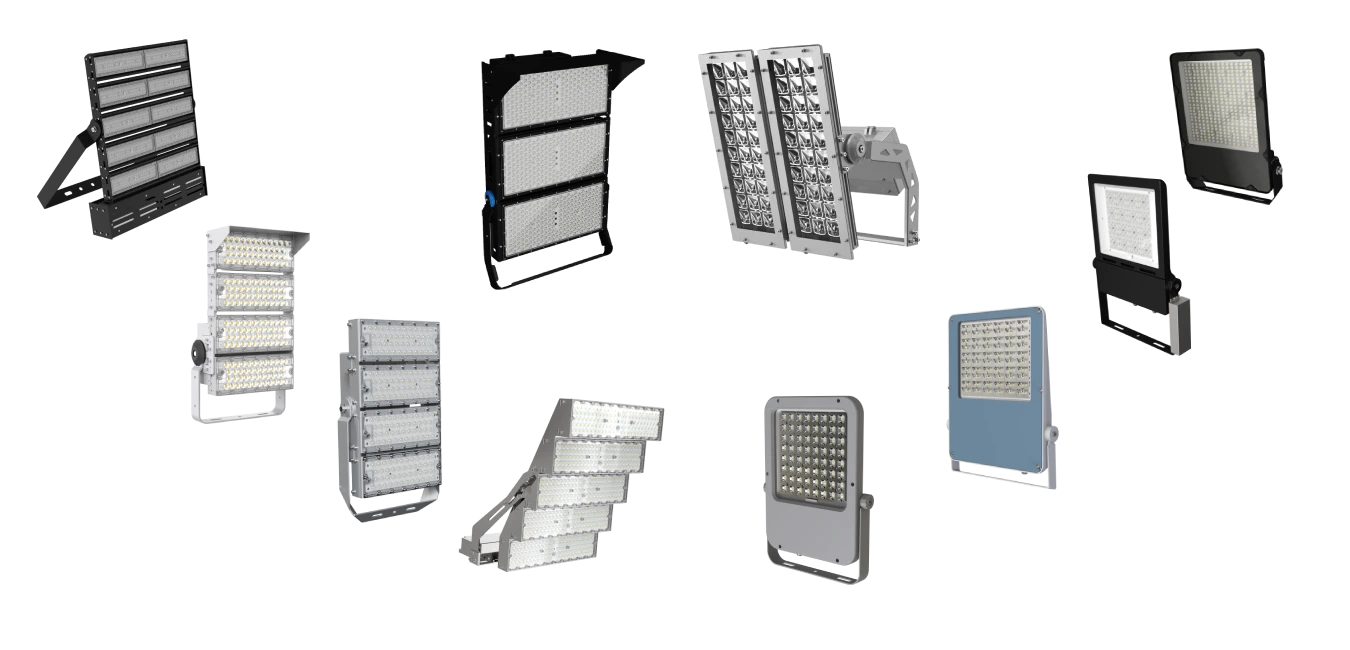

LEDRHYTHM has a wide range of LED flood light products, each with its own unique application scenarios. We rigorously control their quality and environmental tolerance. Before each product is released to the market, we subject it to dozens of tests. We have extensive specialized equipment and personnel to perform this task. Only products that meet these standards are delivered to you.
