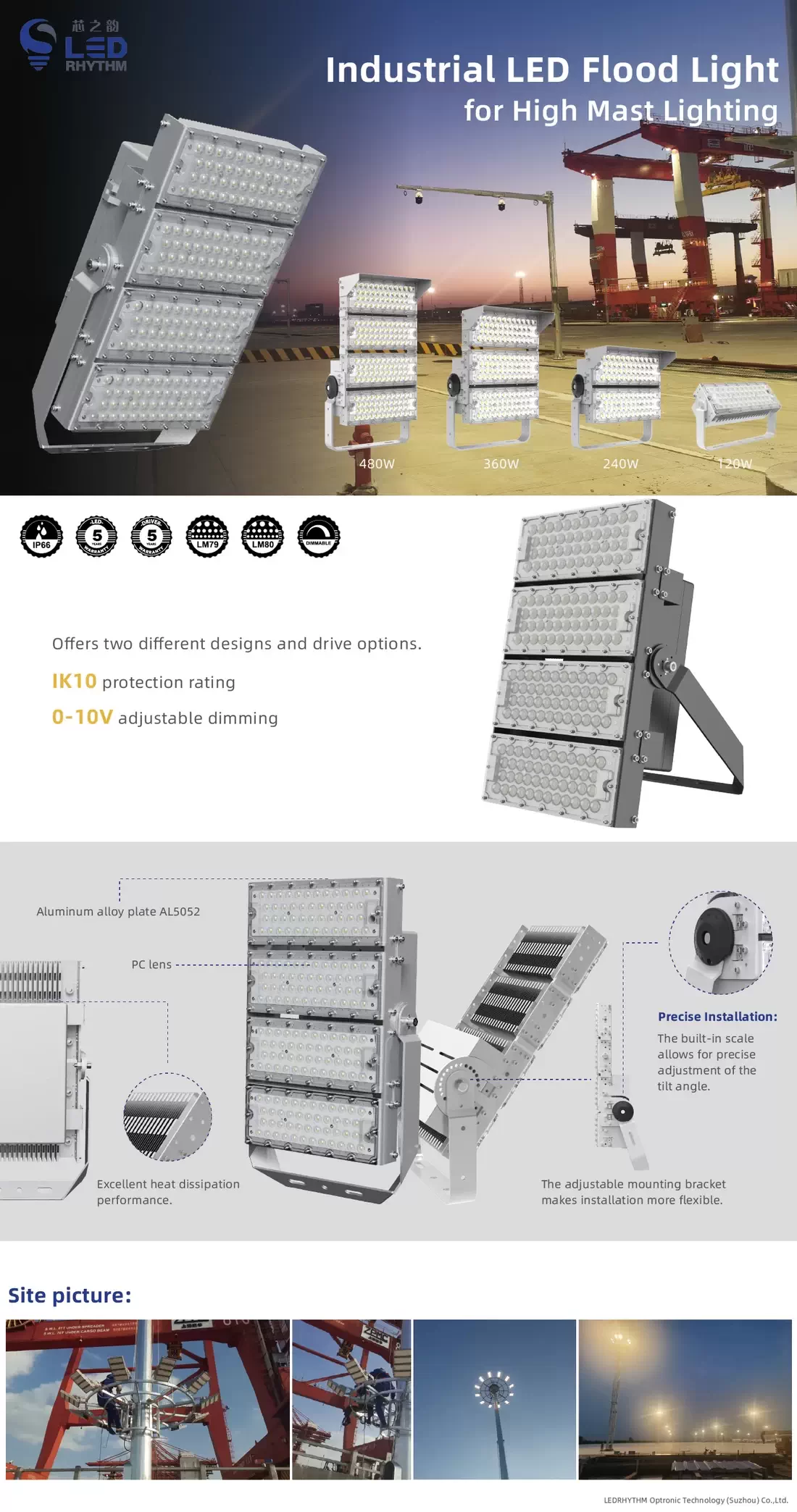

LED Module Flood Light for High Mast Lighting

As one of our excellent modular LED lights, this flood light is mounted on high pole or tall building. It offers two different designs and driver options, and features a tough structure and excellent heat dissipation. It supports eight beam angles and flexible bracket adjustment, ensuring precise light distribution and even coverage in any area. Designed to operate reliably in harsh outdoor conditions, it’s widely used in ports lighting, sports fields and area lighting.

Product Features

Power: 120W, 240W, 360W, 480W
Eight symmetric and asymmetric beam angles optional
IP66 and IK10 protection rating
Wide range of voltages suitable for retrofit projects
Excellent heat dissipation and anti-corrosion performance.

🔔 Ledrhythm products are designed for the global market. Please contact our sales team for certification details.

🔔 Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.

Series	Transformer III
Power	120W, 240W, 360W, 480W
Expected Life	Over 50,000 hrs
Rating	IP66
Color Rendering Index (CRI)	70, 80, 90
Operating Temp	-30°C – +45°C
Relative Humidity	0-90% RH
Power Factor	≥95%
Input Line Voltage	120-277/277-480 VAC
Input Line Frequency	50/60 Hz
LED Chips	OSRAM
DIMMING	0-10V Optional
LED Efficiency	3000K-140 lm/w, 4000K-140 lm/w, 5000K-140 lm/w, 5700K-140 lm/w
Warranty	5-Year
Housing	Aluminum alloy plate AL5052
Gasketing	Neoprene Rubber
Finish	Protective UV Stabilized Powdercoat 4000 Hour Salt Spray Tested to ASTM B117
Application	Parking lot, Stadium, Port terminal

modular port flood lighting

high mast flood lighting port

What is the highest height your LED flood lights can be mounted?

This standard LED flood light offers a power range of 120W to 480W and is suitable for installation heights between 12 and 30 meters, such as in sports fields, cargo areas, parking lots and harbors.

If you require higher or longer-range lighting, we can customize project-specific flood lights with power up to 1800W and a luminous flux of up to 250,000 lumens. These flood lights can be installed on poles 40 to 60 meters tall or higher.

Mounting Height	Recommended Power Range	Typical Applications
12–20 m	120W–240W	Outdoor courts, parking lots
20–30 m	240W–480W	Industrial areas, port handling zones
30–40 m	600W–1000W (custom)	Stadium, docks, large railyards
40–60 m	1200W–1800W (engineering custom)	Stadium, large port areas, airport aprons

Can your flood lights withstand harsh environments?

Our high mast flood lights are designed for harsh outdoor environments. They have an IP66 rating to withstand heavy rain and sandstorms, and an IK10 rating to resist impact and high-altitude wind vibrations. Furthermore, the housing is hyper tough, making it suitable for use in corrosive environments like high salt spray and humidity at seaside locations, as well as chemical production areas. Industrial-grade heat dissipation ensures long-term, stable operation.

What are the advantages of multiple beam angles?

In order to ensure that the high-mast flood lighting is concentrated in the required area while taking into account energy saving and anti-glare effects, it is very necessary to choose the appropriate beam angle.

Beam angles ranging from 10° to 90°, selected at different mounting heights, are suitable for long-range lighting, providing concentrated, uniform light.
Asymmetric light distribution allows for precise control of light direction, preventing light from reaching irrelevant areas.
