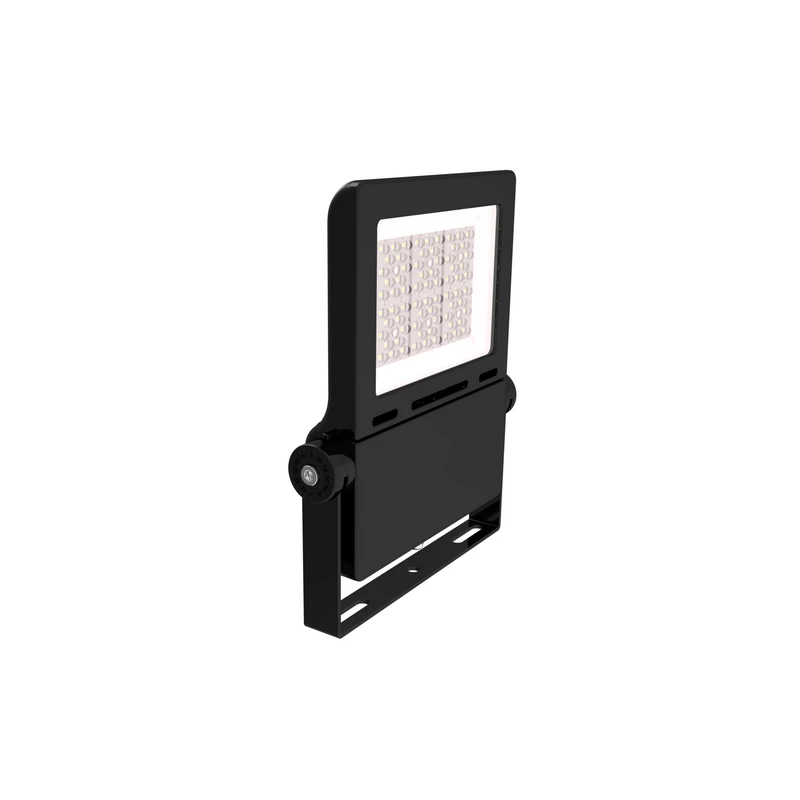

Tool-Less Commercial LED Flood Light 100-400W

This is a versatile, high-performance commercial LED flood light, made of die-cast aluminum with very strong and slim structure. It boasts IP66 and 10KV surge protection, making it ideal for any outdoor environment, including sports venues, parking lots, intersections and area lighting. Its simplified wiring and installation make it suitable for flexible applications in diverse locations. A variety of beam angles are available to ensure more even lighting and better control glare.

Product Features

Power: 100W, 200W, 300W, 400W
IP66 and 10KV surge protection
Toolless buckle design, easy maintenance
Equip with vent to avoid internal fogging and frosting
Four beam angles and 0-10V dimming

🔔 Ledrhythm products are designed for the global market. Please contact our sales team for certification details.

🔔 Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.

Series	SlimⅡ
Power	100W, 200W, 300W, 400W
Expected Life	Over 50,000 hrs
Rating	IP66
Color Rendering Index (CRI)	>70
Operating Temp	-30°C – +45°C
Relative Humidity	0-90% RH
Power Factor	≥95%
Input Line Voltage	120-277/277-480 VAC
Input Line Frequency	50/60 Hz
LED Chips	OSRAM
DIMMING	0-10V Optional
LED Efficiency	3000K-120 lm/w, 4000K-130 lm/w, 5000K-130 lm/w, 5700K-130 lm/w
Warranty	5-Year
Housing	Die Cast Aluminum ADC12
Gasketing	Neoprene Rubber
Finish	Protective UV Stabilized Powdercoat 4000 Hour Salt Spray Tested to ASTM B117
Application	Warehouse, Cold storage, Retail areas , Production and assembly halls

commercial flood light optics

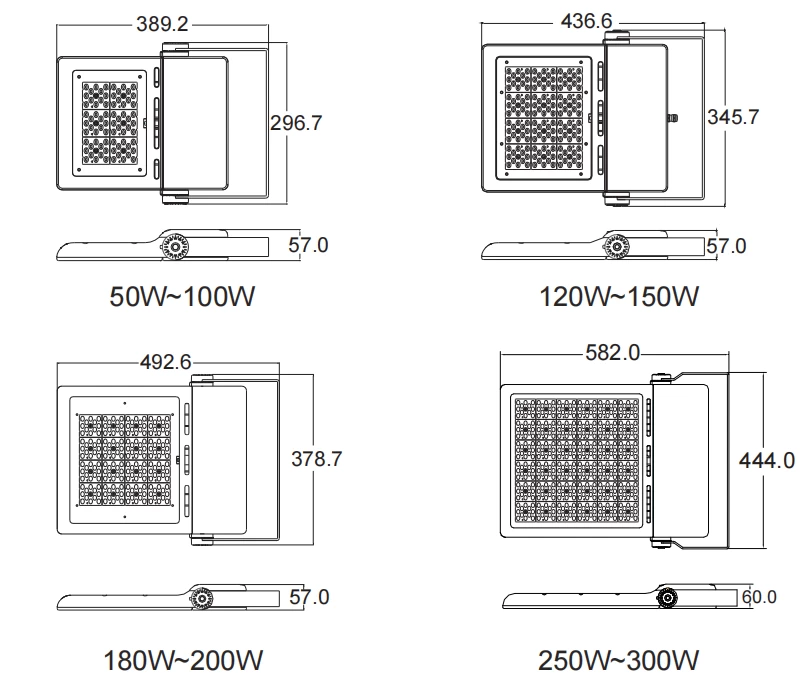

commercial flood light size

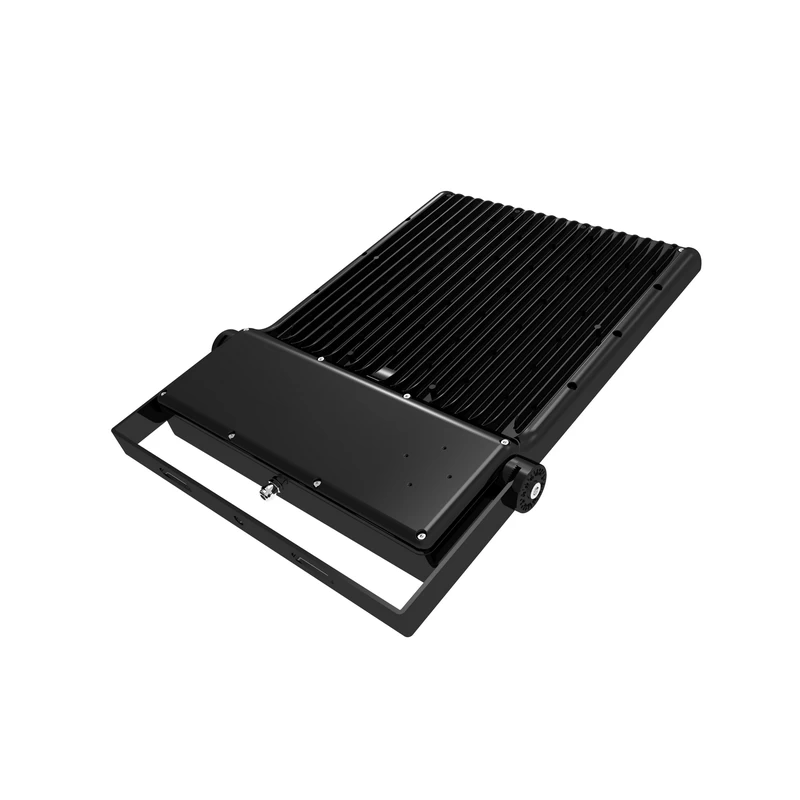

outside commercial flood light

What are tool-free maintenance LED flood lights?

This LED flood light features a tool-free snap-on design, making maintenance and cleaning easy. Simply flip the snap on the top of the fixture to open it and maintenance the internal power supply and LED.

What is the function of 10V surge protection?

The main function of 10V surge protection is to prevent sudden voltage fluctuations from damaging the internal power supply and driver module of the fixture. This will accelerate the aging of the LED driver and shorten the life of the fixtures.

Resists tiny transient surges on the power grid, preventing fatigue in driver electronics caused by repeated surges.
Extends the life of LED drivers and maintains stable light output.
Enhances the reliability of outdoor flood lighting, ensuring safe operation in unstable voltage environments such as factories, ports and sports fields.

Can you design lighting for my outdoor environment?

Yes, we offer free custom outdoor flood lighting services. Simply provide site dimensions and intended use (parking lot, sports, building facade). We will perform professional optical simulations (Dialux/Relux) based on your specific project requirements and output the following information for your reference:
