2/4ft Linear High Bay LED Light for Indoor Stadium

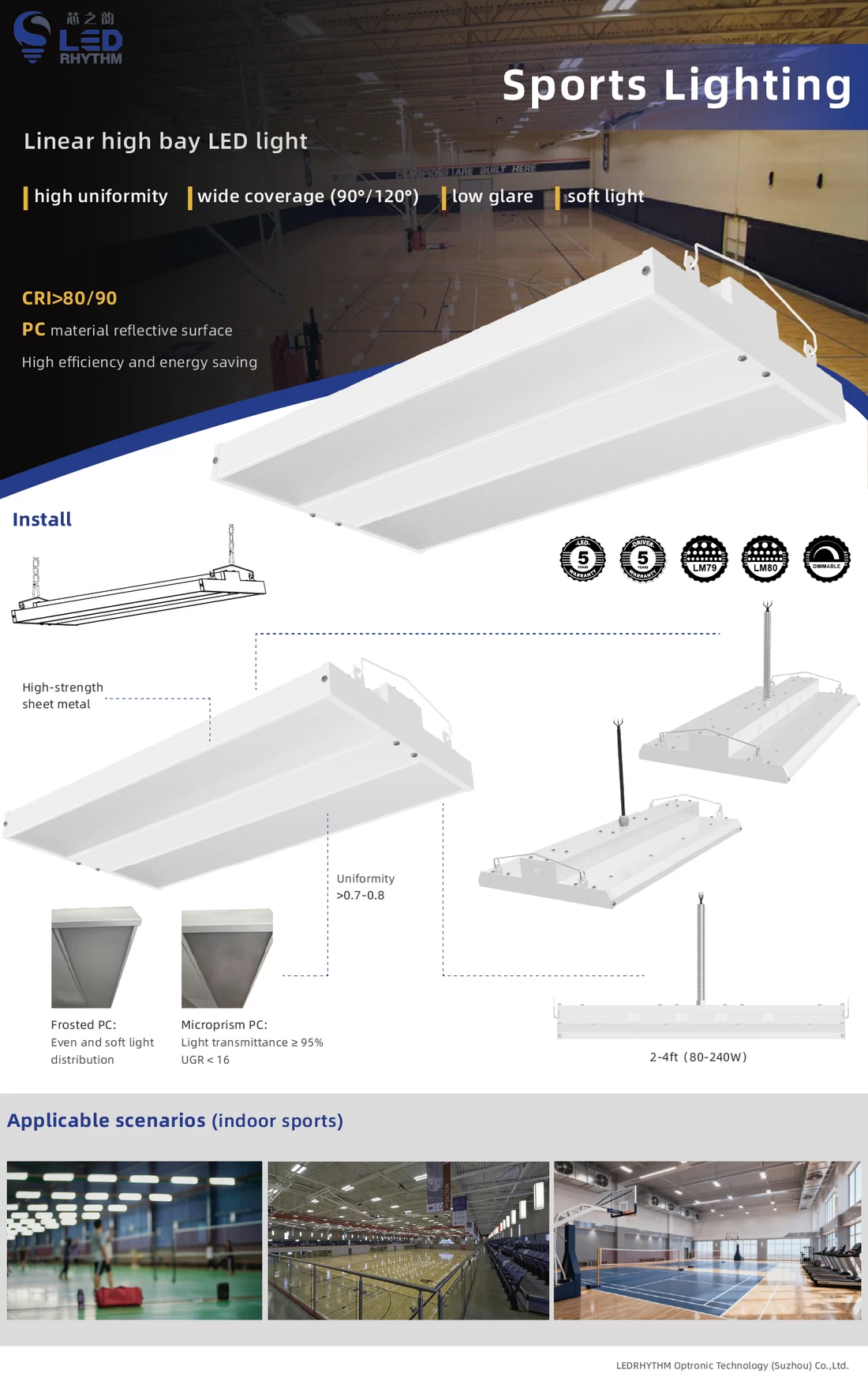

This linear high bay LED light is available in 2ft and 4ft lengths, with a housing constructed from high-strength sheet metal. It features two linear light-emitting surfaces, 20% increase over “Ocean II“, providing a wider coverage area. A PC diffuser or prism is also available, and the beam angle can be adjusted 90°, providing more flexible light control and effectively solving problems such as uneven lighting and glare. With a color rendering index of 90 or higher, it is specifically designed for indoor sports venues such as badminton, tennis, and basketball.

Product Features

80W,100W,120W,150W,200W,240W
Two linear luminous surfaces
Backlight uniformity >80%
Optional precision prism or diffuser
0-10V Dimmable

🔔 Ledrhythm products are designed for the global market. Please contact our sales team for certification details.

🔔 Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.

“Hermes” linear high bay LED light has a luminous efficacy of 150lm/W and a luminous flux of up to 36,000lm at maximum power. It is suitable for indoor stadiums of various sizes and ceiling heights.

Its backlight uniformity is greater than 80%, far exceeding the 60% of ordinary lamps, providing higher brightness while making the light softer and lower glare.

Series	Hermes
Power	80W, 100W, 120W, 150W, 200W, 240W
Expected Life	Over 50,000 hrs
Rating	IP20
Color Rendering Index (CRI)	>80
Operating Temp	-30°C – +45°C
Relative Humidity	0-90% RH
Power Factor	≥95%
Input Line Voltage	120-277/220-240 VAC
Input Line Frequency	50/60 Hz
LED Chips	OSRAM
DIMMING	0-10V Optional
LED Efficiency	3000K-130 lm/w、4000K-140 lm/w、5000K-150 lm/w、5700K-130 lm/w
Warranty	5-Year
Housing	High-strength sheet metal
Lens	PC
Finish	Protective UV Stabilized Powdercoat 4000 Hour Salt Spray Tested to ASTM B117
Application	Stadium, Sports

linear high bay led lights optics

2/4ft linear high bay led light size

basketball 4ft linear high bay led lights

How do I choose between 2ft and 4ft linear high bay LED lights?

Choosing the right length depends on your stadium’s layout and ceiling height. A 2-foot luminaire is suitable for more compact areas with ceilings between 6 and 8 meters. A 4-foot luminaire, on the other hand, covers a larger space with fewer fixtures and is suitable for ceilings of 8-12m, large stadiums.

What are the advantages of your linear high bay LED lights in stadiums?

Firstly, this linear LED high bay light is available in two lengths: 2ft and 4ft. Its greatest advantage is its flexible light control. Its two luminous surfaces, left and right, combined with a precision prism, achieve backlight uniformity exceeding 80% and effectively reduce glare. With a high luminous efficiency of 150lm/W, it is more energy-efficient and has a longer lifespan.

Can linear high bay LED lights be customized?

Yes, we can customize services based on your venue and needs, including wattage, beam angle, color temperature and dimming control to achieve the best lighting effect.
