Modular Linear High Bay LED Light – 60W Per Module

This LED high bay light features linear modular design, with each module 60W and supporting four modules up to 240W, providing total output of 36,000 lumens. IP65 waterproof and dustproof rating, and offers a variety of beam angles from narrow to wide. Its ideal for linear lighting in indoor industrial areas or semi-outdoor porches. You can also use your mobile phone/tablet to wirelessly control the on/off and dimming through Zigbee Wifi, and you can accurately control one or more lighting devices in a certain area. Supports both surface and suspended mounting.

Product Features

60W, 120W, 180W, 240W
Intelligent control, 0-10V dimming
Modular linear design
IP65 and 4KV surge protection
Beam angles 15°, 40°, 60°, 70*30°, 49*21°, 90°
High-strength extruded aluminumalloy housing
High density LED chip for increased uniformity

🔔 Ledrhythm products are designed for the global market. Please contact our sales team for certification details.

🔔 Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.

“Lumina Ⅱ” modular linear high bay LED light have intelligent control system. Can be equipped with HiSmartPIR/daylight adjustment sensors, allowing the lamps to be dimmed to high levels or SmartDim by remote control. When a person or forklift is detected at work, the sensor automatically adjusts the brightness. Since modular linear design, different luminous lengths are available, they are suitable for aisles and corridors in industrial areas.

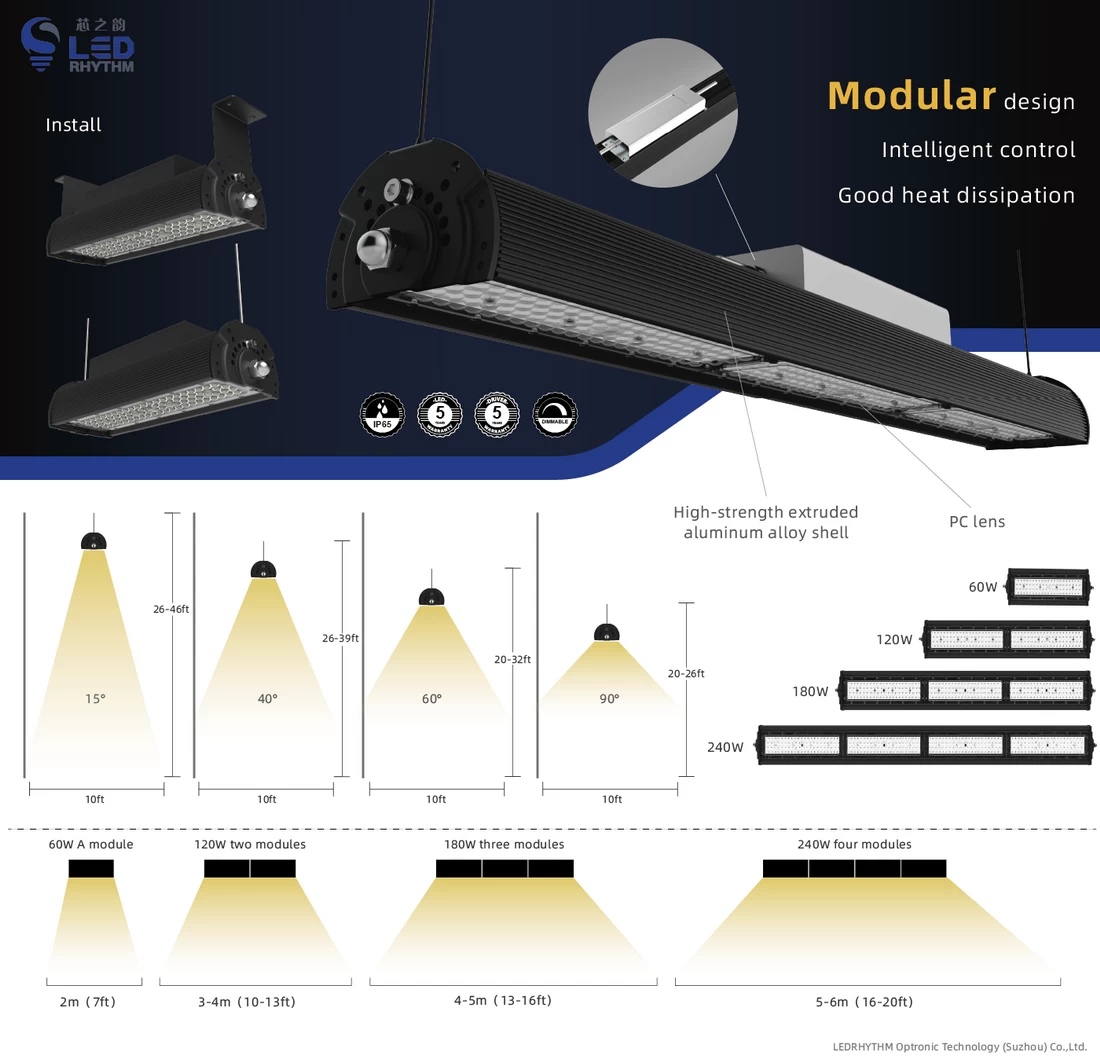

industrial linear high bay led light

Series	Lumina II
Power	60W, 120W, 180W, 240W
Expected Life	Over 50,000 hrs
Rating	IP65
Color Rendering Index (CRI)	>80
Operating Temp	-30°C – +45°C
Relative Humidity	0-90% RH
Power Factor	≥97%
Input Line Voltage	120-277 VAC
Input Line Frequency	50/60 Hz
LED Chips	Lumileds
DIMMING	0-10V Optional
LED Efficiency	3000K-120 lm/w、4000K-130 lm/w、5000K-130 lm/w、5700K-125 lm/w
Warranty	5-Year
Housing	AL6063
Gasketing	Neoprene Rubber
Finish	Protective UV Stabilized Powdercoat 4000 Hour Salt Spray Tested to ASTM B117
Application	Warehouse、Production and assembly halls

modular linear high bay led lights optics

modular linear high bay led lights size

What is the difference between linear high bay and UFO high bay lights?

Linear high bay led lights offer a wider beam spread, making them perfect for large rectangular spaces, while UFO high bay led lights are compact with round distribution, ideal for more centralized or open areas.

Do you offer sensor integration or smart controls?

Yes, lights can be integrated with motion sensors, daylight sensors, and Zigbee/DALI smart controls, ideal for automation and energy savings.

Can you guys teach me how to choose the right configuration?

Of course, you only need to tell us the usage scenarios, precautions or other requirements of the lamps, and our professionals will give you a perfect solution.

In what other environments can this linear high bay led lights be used?

In addition to being used in hallways, shop areas and other high bays, it is also very suitable for oblique installation at the gates of logistics, warehousing and factories and used as entrance lighting. It can also be used in auto repair shops, showrooms, etc.

Why choose modular designed linear high bay LED light?

Because linear LED high bay lights have different module numbers and lengths, and we support four modules and four lengths options. This allows for flexible adaptation to different industrial or commercial lighting needs. Furthermore, the modular design provides better heat dissipation efficiency, and each module operates independently, maintenance is also relatively simple.
