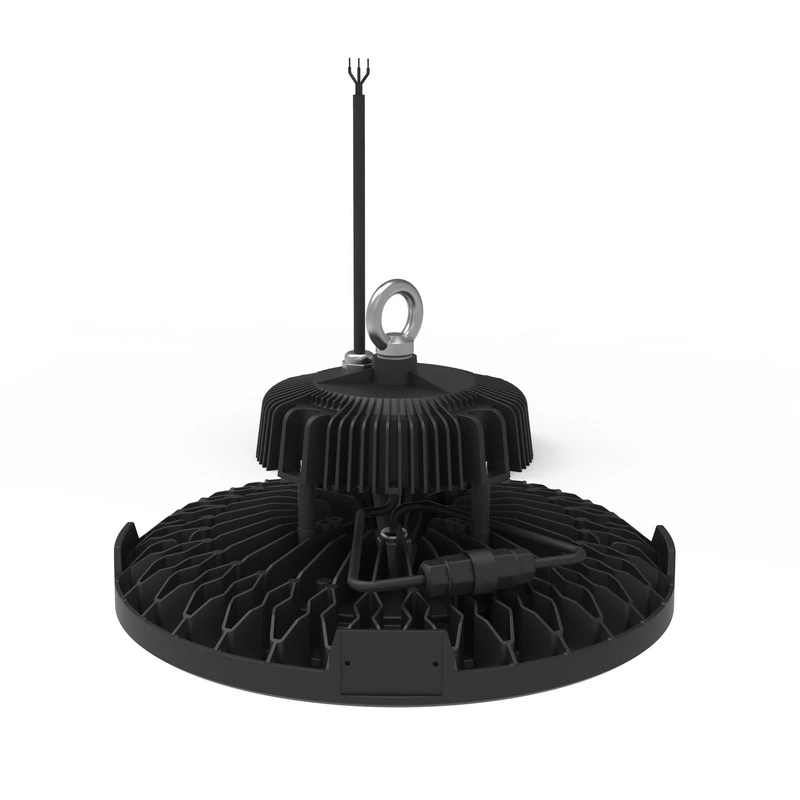

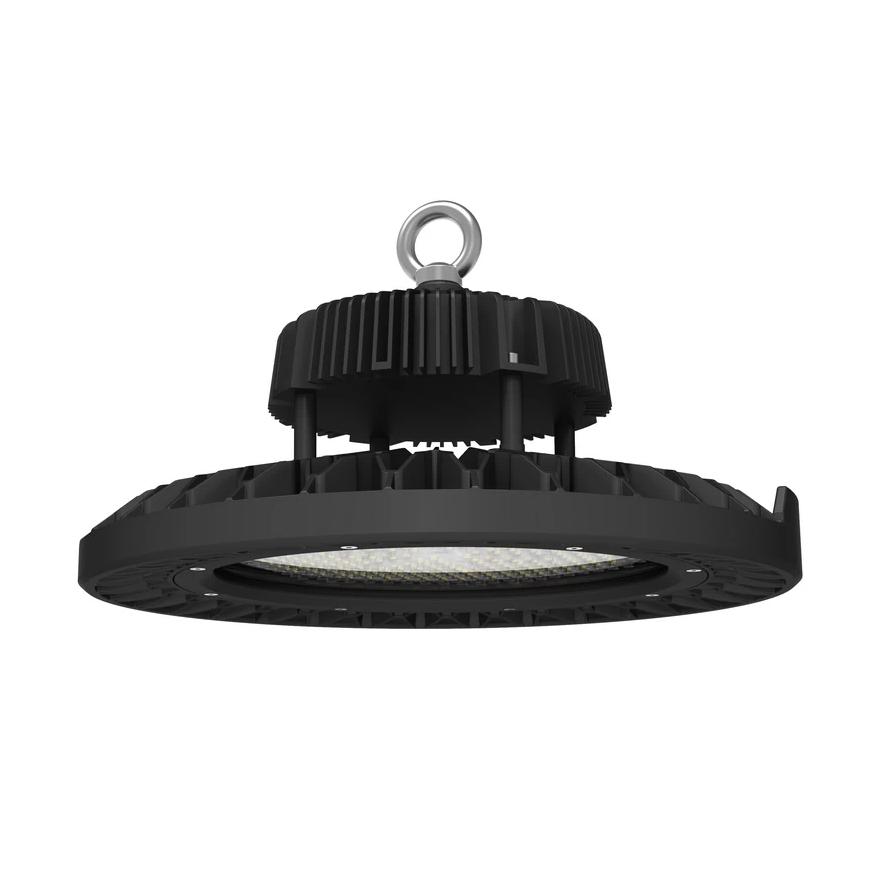

Diamond Ⅰ Multiple Beam Angles Warehouse LED High Bay

Diamond led warehouse lighting round high bay​ have various light distribution angles, up 400W power and high bay led average 30,000 lumens or more, it is very suitable places with large spaces and high ceilings. Aluminum material one-piece die-casting, good heat dissipation, IP66 protection has good adaptability.Variety color temperatures are available, among which LED high bay lights 5000k is widely used, eliminating dark spots and shadows. Diamond is perfect solution for factory lighting, warehouse lighting, and sports lighting.

Product Features

  1. Power range 80W up to 400W
  2. Light options including 45°, 60°, 80°, 90°, and 120°
  3. Die Cast Aluminum A380 Alloy ADC12

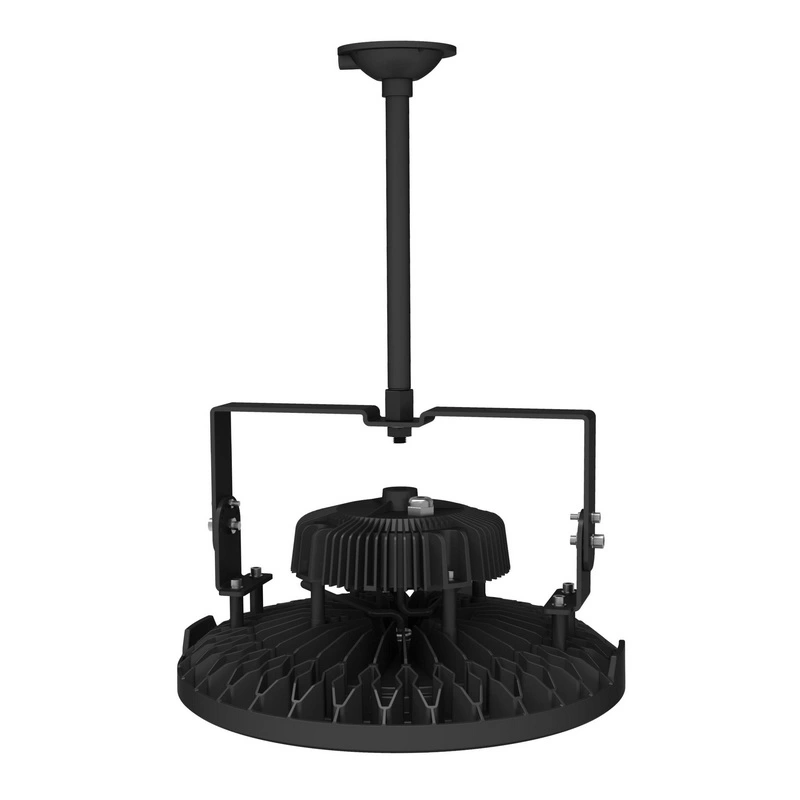

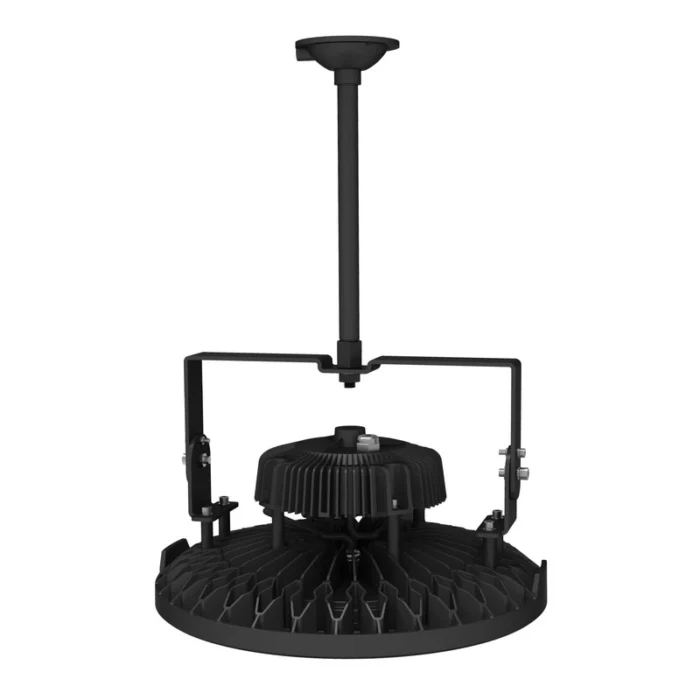

  4. Supports multiple installation modes
  5. Customized to meet your unique requirements

🔔 Ledrhythm products are designed for the global market. Please contact our sales team for certification details.

🔔 Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.

led high bay lights 5000k​

Diamond Ⅰ led warehouse lighting high bay flexible optical light distribution design can easily cope with complex environments such as warehouses, factory, retail areas, and production lines, injecting intelligent matching into each beam of light to improve production efficiency and space quality.

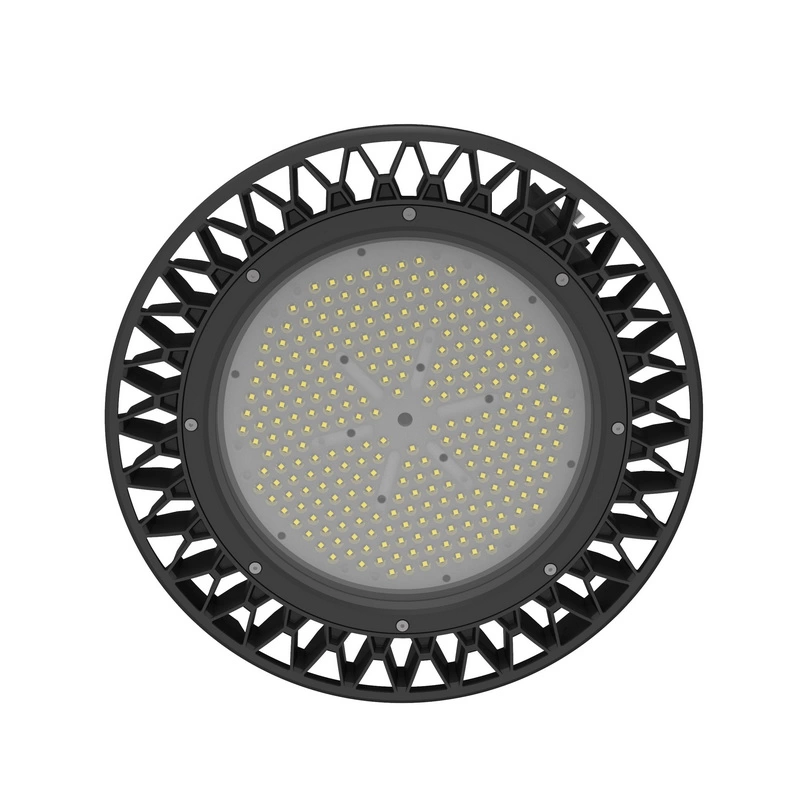

Equipped with the world’s top light source OSRAM and power source MeanWell , color rendering index over Ra80. Can be used in LED sports lighting with high lighting requirements, perfectly reproducing true colors and defining the unity of high appearance and high quality.

In extreme environments ranging from -30°C to +45°C, led ufo high bay​ continues to operate efficiently and is not afraid of the deep cold of cold storage, and can also withstand hot industrial environments.
Ultra-clear tempered glass provides high-definition light transmission, provide the best experience of LED high bay lights 5000k color temperature. And make impact resistance of diamond round warehouse high bay is improved several times. It not only protects the physical safety of the lamp, but also illuminates the space with pure light.

Product Benefits

  1. Long Lifespan and Durability
    With a remarkable lifespan of up to 50,000 hours, these lights require less frequent replacements, reducing maintenance costs and hassle. The robust construction and high-quality components make them durable enough to withstand various environmental conditions.
  2. Superior Light Distribution and Quality
    The light distribution options, including 45°, 60°, 80°, 90°, and 120°, ensure precise illumination. Led warehouse lighting high bay​ and linear led high bay lights provide unique lighting patterns. The lenses are treated to offer excellent anti-glare effects, enhancing the overall lighting quality.
  3. Intelligent Control and Energy Efficiency
    This series features 0-10V dimming and can be equipped with motion sensors for smart control. The energy-saving performance is impressive, with some models achieving up to 130 lumens per watt. Our all high bay often come with these advanced control features.
  4. Durable Construction and Heat Dissipation

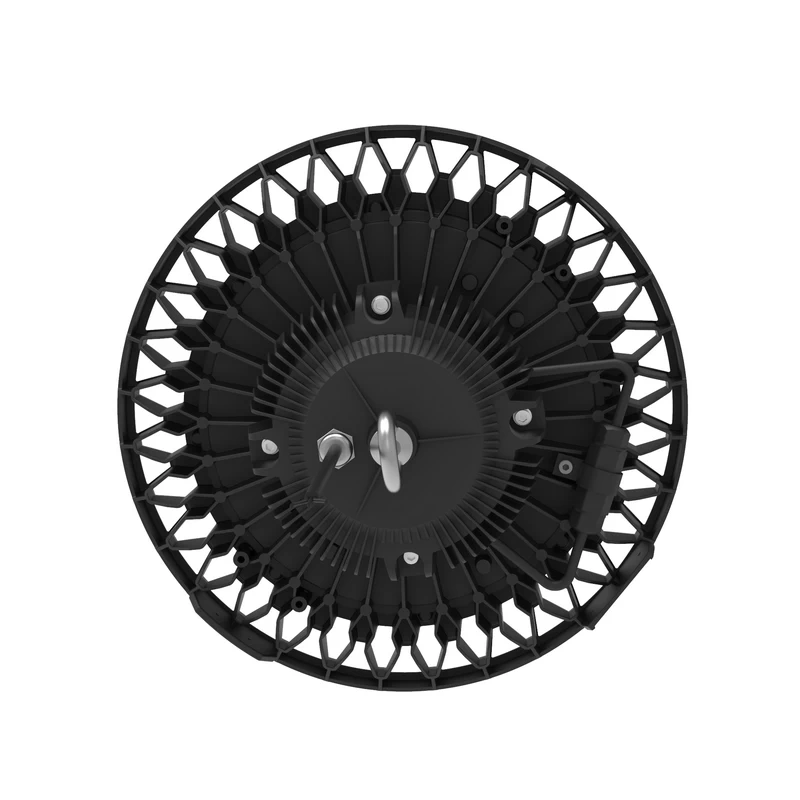

    Light​ die-cast aluminum housing ensures durability and excellent corrosion resistance. The unique heat dissipation design, like the honeycomb structure in some models, keeps the lights running cool and extends their lifespan.
  5. Environmental Friendliness and Safety
    The led high bay lights are mercury-free and comply with green lighting standards. They are safe to use and have low environmental impact. The emergency functions ensure continued operation during power outages, providing reliable lighting when it’s needed the most.
  6. Compact Design and Easy Installation
    The compact design saves space and makes installation a breeze. Whether it’s ceiling-mounted or pendant-mounted, the setup is straightforward. The high bay fixtures are engineered for simplicity and convenience.

Fields Application

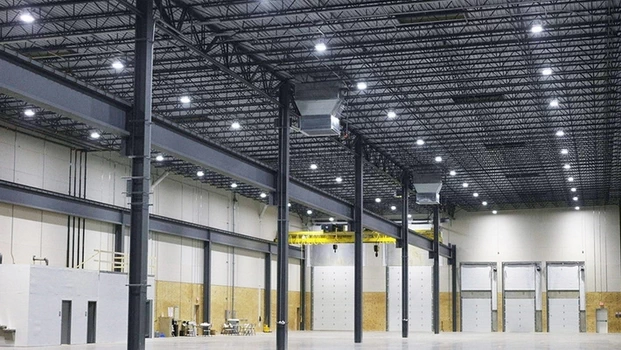

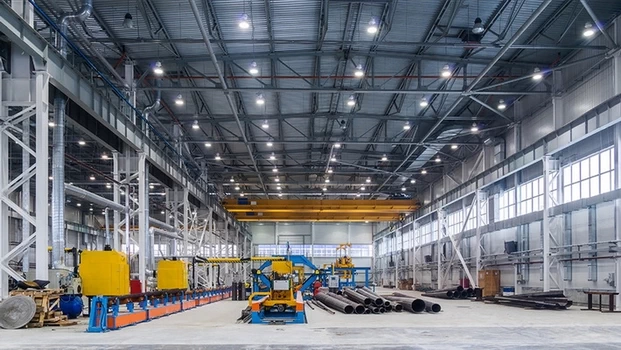

  1. Industrial Halls/Industrial Settings
    The high power and high lumen led high bay​ are ideal for industrial halls and warehouses. High bay led lights 30000 lumens can meet most environmental needs.The powerful illumination provided by lights ensures clear visibility, enhancing safety and productivity.
  2. Commercial Spaces
    In retail areas and production and assembly halls, the high bay led shop lights create an inviting and well-lit atmosphere, highlighting products and improving the working environment.
  3. Other Applications
    Cold storages require reliable and cold-resistant lighting, and our led high bay light​ fit the bill perfectly.
    Parking lots and stadiums also benefit from the wide coverage and bright light offered by these fixtures.
    Whether it’s the round high bay lights or the linear high bay lights, they all contribute to efficient and effective lighting in various fields. So, no matter the application, our led warehouse lighting high bay​ are ready to shine and meet your lighting requirements.,please contact me wholesale led high bay lights.
Series Diamond I
Power 80W, 100W, 120W, 150W, 200W, 240W, 300W, 400W
Expected Life Over 50,000 hrs
Rating IP66
Color Rendering Index (CRI) >80
Operating Temp -30°C – +45°C
Relative Humidity 0-90% RH
Power Factor ≥95%
Input Line Voltage 120-277/277-480 VAC
Input Line Frequency 50/60 Hz
LED Chips OSRAM
DIMMING 0-10V Optional
LED Efficiency 130 lm/w
Warranty 5-Year
Housing Die Cast Aluminum A380 Alloy ADC12
Gasketing Neoprene Rubber
Finish Protective UV Stabilized Powdercoat 4000 Hour Salt Spray Tested to ASTM B117
Application Warehouse、Cold storage、Retail areas 、Production and assembly halls

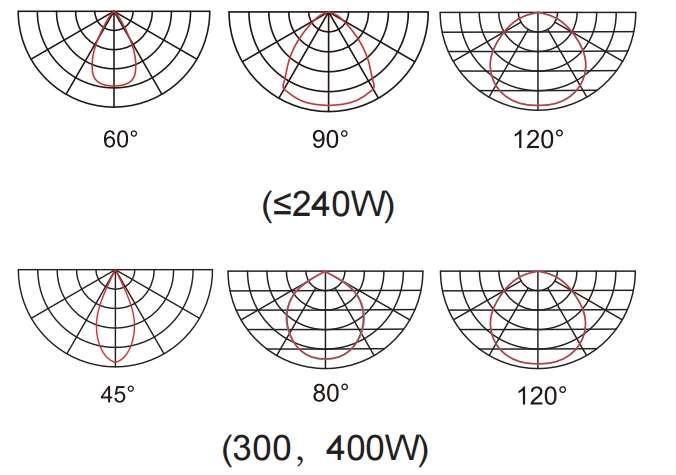

led warehouse lighting high bay​ optics

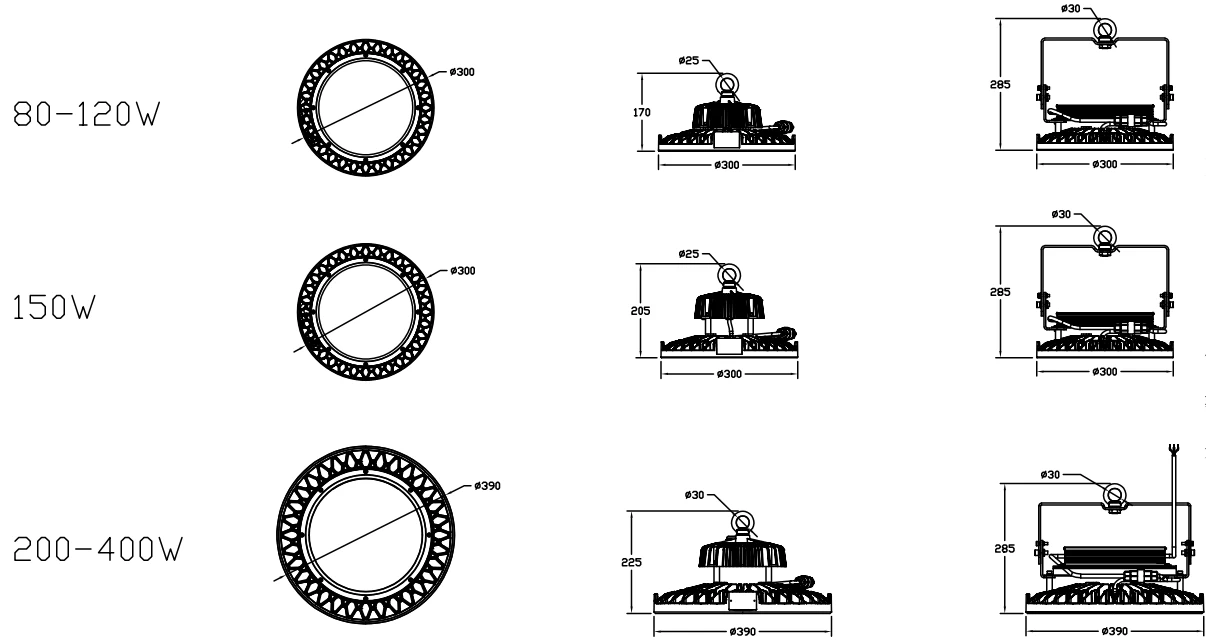

led warehouse lighting high bay​ size

led high power  lighting high bay
led factory lighting​ high bay​
Where is the led warehouse lighting high bay used?
LED warehouse lighting high bay can be used in warehouses, factory workshops, exhibition halls, large shopping malls, sports fields, high ceilings, etc. It is more suitable for places where maintenance and replacement of lamps are difficult and the risk is high.
How should I choose the correct led warehouse lighting high bay power?

This depends on your ceiling height and lighting requirements, generally:100W: 6–8m

150W: 8–10m

200W: 10–12m

240W: 12–15m

Are high bay LED lights with 30,000 lumens energy efficient?
Of course is energy-efficient. A 30,000 lumen output generally only requires 200W to 240W, and ours only requires 240W, depending on the light efficiency of the lamp. Compared with traditional metal halide or high pressure sodium lamps, LED lamps can save up to 70% energy.
Will led high bay lights 5000k​ cause glare or be too harsh?
Glare depends on the lens and beam angle. Our high-quality high-bay luminaires are equipped with anti-glare lenses or frosted covers to evenly diffuse light and reduce glare even at higher installation heights.
5000k color temperature is not glaring in industrial areas with high ceilings and provides a perfect balance of brightness and contrast, which can also prevent worker fatigue.
Is there a warranty on the led warehouse lighting high bay?
Yes, all Ledrhythm lights support 5-year warranty, you don’t need to worry about after-sales problems.
