Outdoor LED Flood Lights – High Power High Mast Lighting

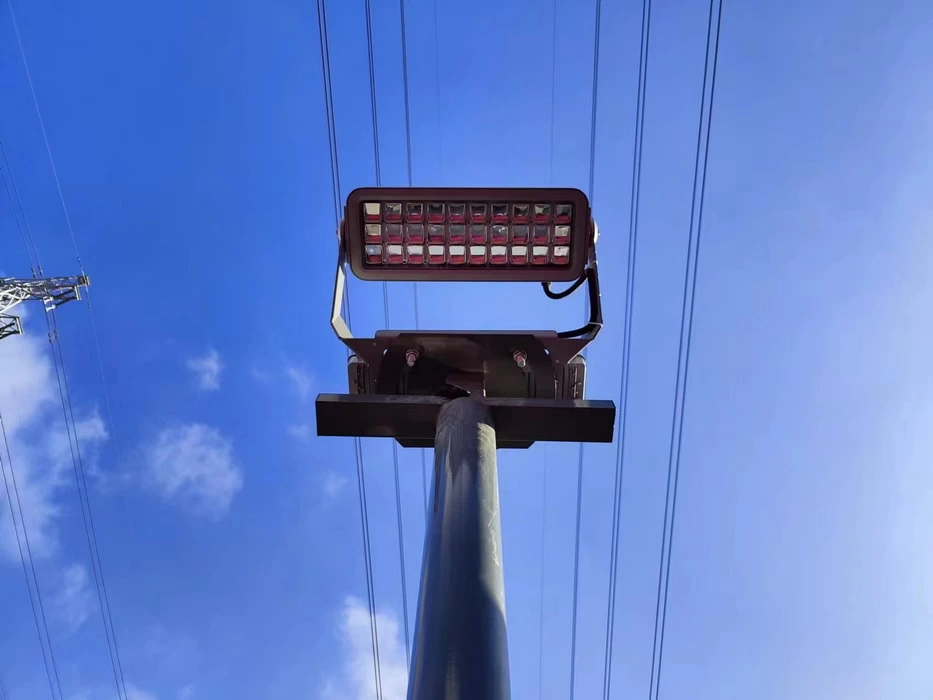

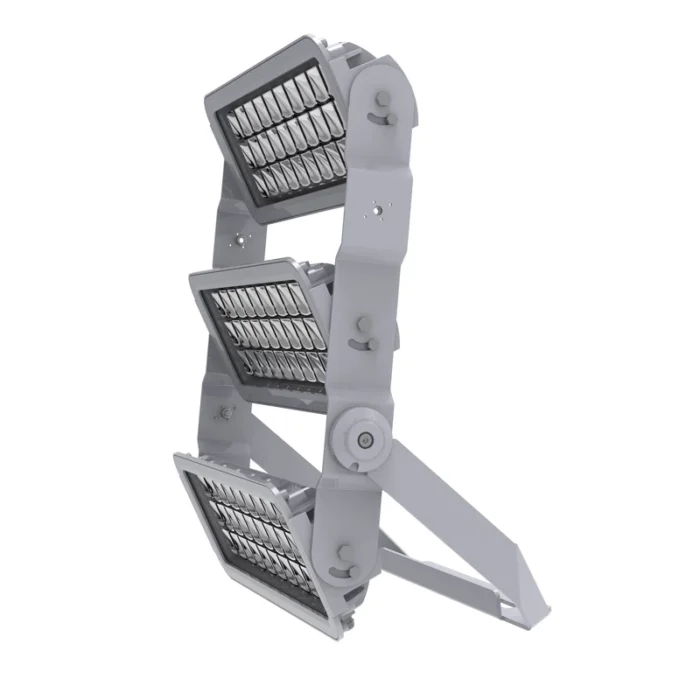

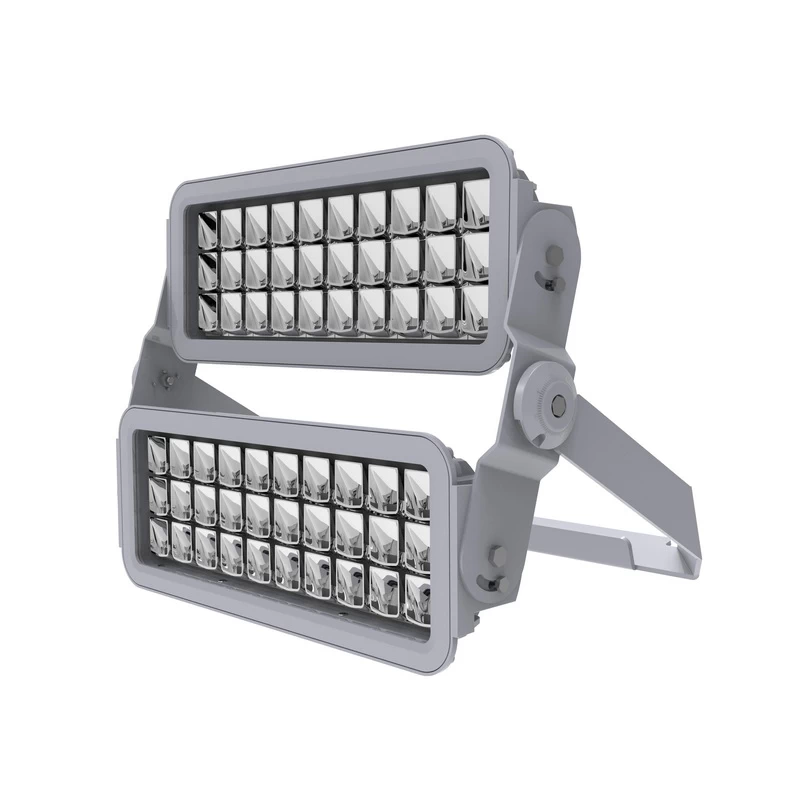

SuperbⅡoutdoor led flood lights, there are two structures: straight and curved (as shown in the figure). Modular light source structure supports the expansion of multiple light sources, has a large power range, and is equipped with a reflector optical design with excellent glare control. Its ingenious design and die-cast aluminum structure lamp body make heat dissipation stronger, and its high protection level can adapt to extreme environments, is an excellent outdoor flood light. It supports hook, bracket, and wall-mounted installation methods, making the installation and maintenance process easy.
Características del producto

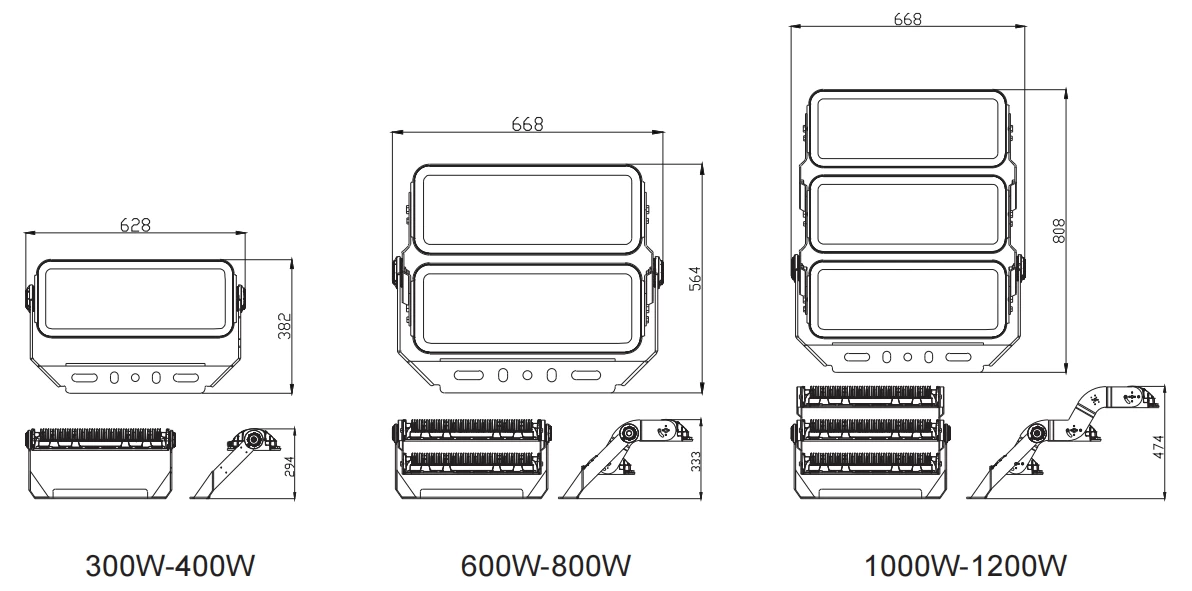

- Potencia opcional 300W-400W,600W-800W,1000W-1200W

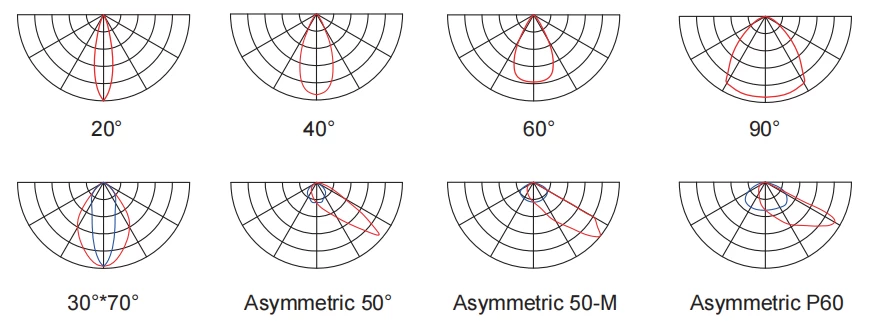

- Ocho ángulos de distribución de la luz
- Flujo luminoso de hasta 130000lm
- Gran alcance y luminosidad
- Soporta regulación 0-10v
🔔 Los productos Ledrhythm están diseñados para el mercado mundial. Póngase en contacto con nuestro equipo de ventas para obtener información sobre la certificación.
🔔 La información de los productos es sólo de referencia. Algunas opciones pueden no estar disponibles para cada configuración. Póngase en contacto con nosotros para obtener más detalles.

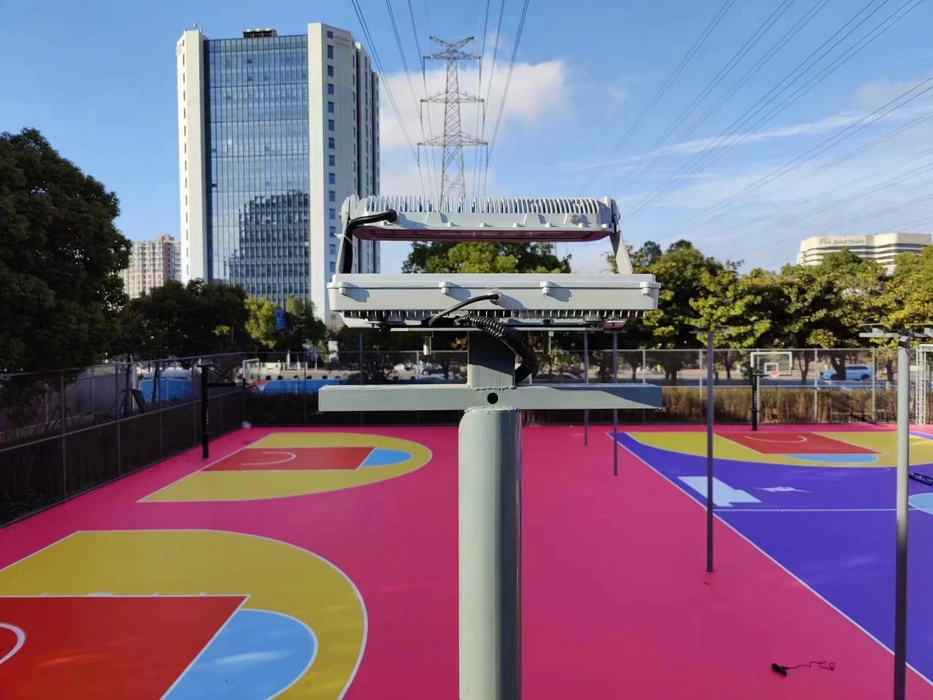

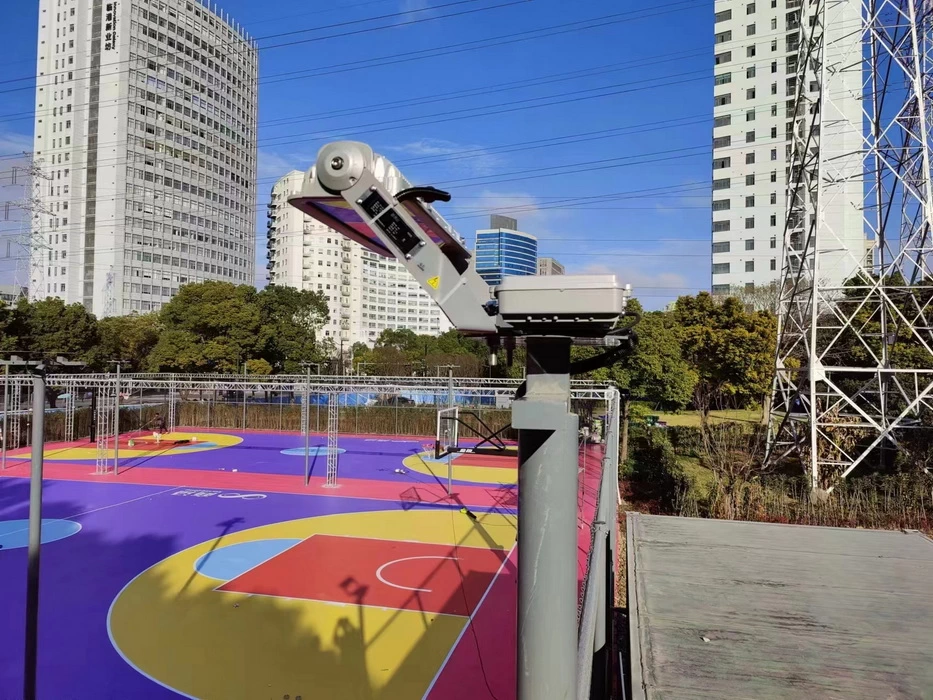

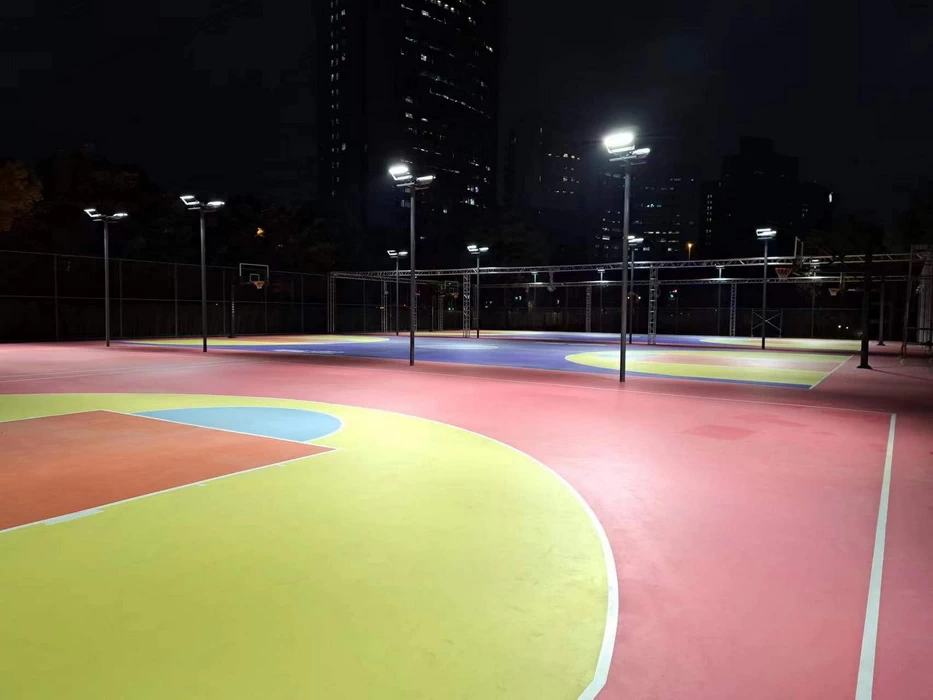

The outdoor floodlight of the SuperbⅡ series helps to keep any outdoor area lighting. Its unique design allows each module light source to be adjusted independently, making it more suitable for sports lighting. The driver and radiator are separated, the operating temperature is lower and the life is longer. It has passed more than a dozen of our rigorous tests, you don’t have to worry about quality control.
Superb II is a modular outdoor led flood lights, with five different configurations and luminous flux from 40,000 to 130,000 lumens, ensures the right lighting for every space and every situation.
Superb II optics are designed to guarantee maximum performance and reliability. Silvercoated aluminium reflectors with maximum reflectivity (97%). By applying the total reflection patent to the reflectors, the light can guarantee very high efficiency (module efficiency up to 140 lm/W) without glare.
The compact and modular shape facilitates installation, radial thermal design that disperses heat in the most optimum way, while the use of high-quality materials means maintenance is reduced to a minimum, ensuring long life for the entire system.
| Serie | SuperbⅡ |
| Potencia | 300W-400W,600W-800W,1000W-1200W |
| Vida útil prevista | Más de 50.000 horas |
| Clasificación | IP66 |
| Índice de reproducción cromática (IRC) | >70 |
| Temperatura de funcionamiento | -30°C - +45°C |
| Humedad relativa | 0-90% RH |
| Factor de potencia | ≥95% |
| Tensión de línea de entrada | 120-277/277-480 VCA |
| Frecuencia de línea de entrada | 50/60 Hz |
| Chips LED | Lumileds |
| DIMMING | Regulable 0-10V Estándar/DALI 2 |
| Eficiencia LED | 3000K-130 lm/w、4000K-140 lm/w、5000K-140 lm/w、5700K-130 lm/w |
| Garantía | 5 años |
| Vivienda | Aluminio fundido a presión |
| Juntas | Goma de neopreno |
| Acabado | Pintura en polvo protectora estabilizada contra rayos UV Ensayo de niebla salina de 4000 horas según ASTM B117 |

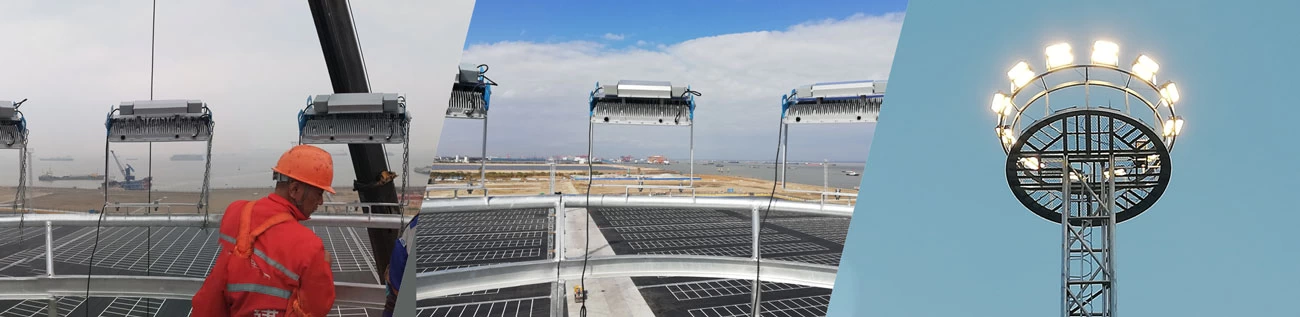

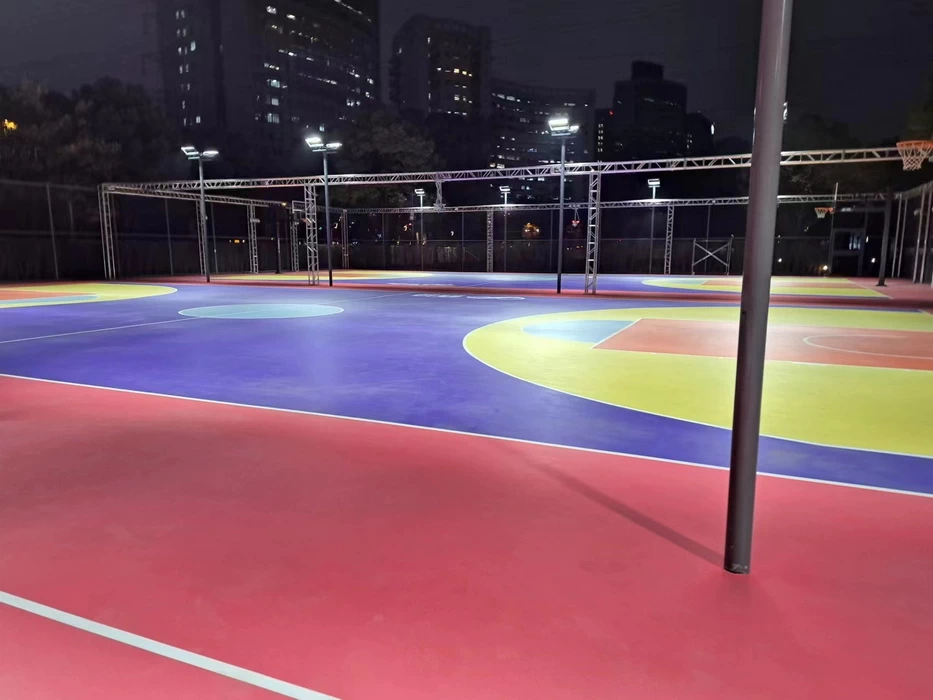

| Aplicación | Estadio, aparcamiento, terminal portuaria |
