Diamond I PRO-lámpara de gran altura y alta temperatura

Description

OVERVIEW

FEATURES

With the ability to operate at 65°C 24/7, LEDRHYTHM Lighting’s High bay lighting solution built to meet the demands of high ambient temperature environments – ‘Bringing Light where People don’t go!’



The Diamoind I-Pro series can provide high temperature environments up to 70°C and is specially designed to provide reliable lighting in industrial sites with high ceilings and high temperature operating environments.



High-bay environments may have higher ambient temperatures and more dust and oil particles. Heat generated by the LED and its associated circuitry can damage the LED when operating in a high ambient temperature environment and/or in an enclosure with limited space.



The right high temperature high bay light has lower power consumption, higher output at higher drive current, longer life, higher robustness, smaller size, faster switching, and excellent durability and reliability.



There are limited lighting products on the market that can operate continuously in high temperature environments, such as pulp and paper mills, foundries, and glass factories. Excessive temperatures will decrease the lights’ performance and increase their maintenance costs. The Diamond II-PRo and Venus II_Pro Range of high temperature LEDs is specifically designed for these extreme conditions, providing high lighting levels and long life.



Designed to perform and built to last, LEDRHYTHM Lighting’s Diamond II-PRO range are the lighting solution for:

• Glass Factories

• Foundries

• Power Plants

• Hot Mills

• Blast Furnaces

• Steel Manufacturing

• Chemical Plants

KEY FEATURES

• Plug & Play-installation by disconnectable Plug

• Suitable for repeated switching on and off

• Very high resistance to vibrations

• Resistant to aggressive chemical environments

• Long maintenance intervals

• Durable and maintainable luminaire

•Warranty : 5 years 24/7 use at max temp

•Operating temperature: -30°C +65°C

•Imperviousness: IP65

•Supply voltage: 220-240V 50/60Hz

•Power consumption: 80~200 W（Diamond I-Pro for High Bay)

•Resistance to overload: 380 V AC, 48 h (Supports voltage spikes < 4 kV)

•T°C with incandescent wires: non-flammable

•Vibration resistance: Meets the severe application requirements of the standard EN 60598-1 (tested according to CEI 60068-2-6)



Product Benefits

Diamond_ufo led high bay light

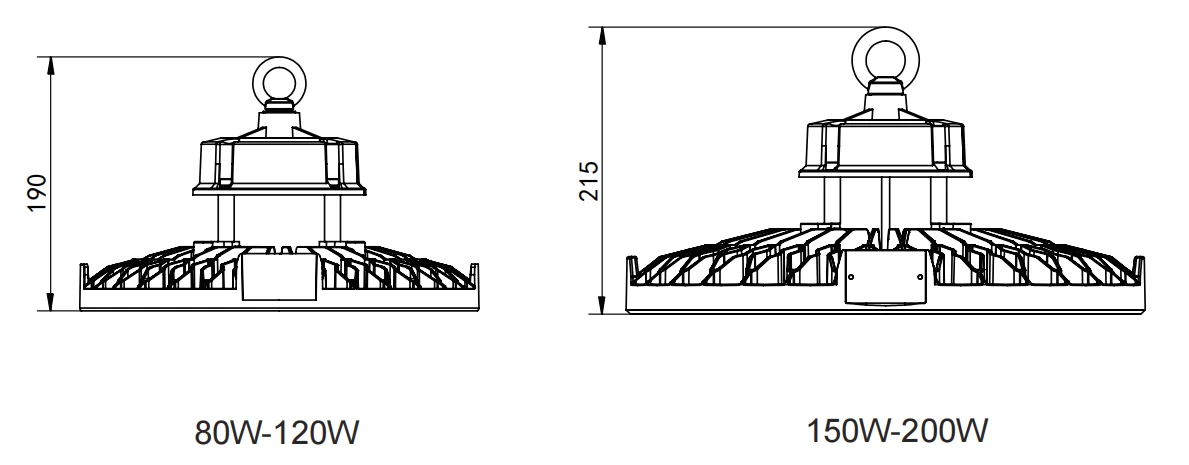

80W,100W,120W,150W,200W

5/3 year warranty

Patent and compact design

Lumen Efficiency of Lamp Fixture up to 150Lm/w.

Product label by elegant metal nameplate on product

Original Nichia chip from Japan and Mean Well driver.

APPLICATION

UFO led high bay light

• Glass Factories

• Foundries

• Power Plants

• Hot Mills

• Blast Furnaces

• Steel Manufacturing

• Chemical Plants



•
•
•
