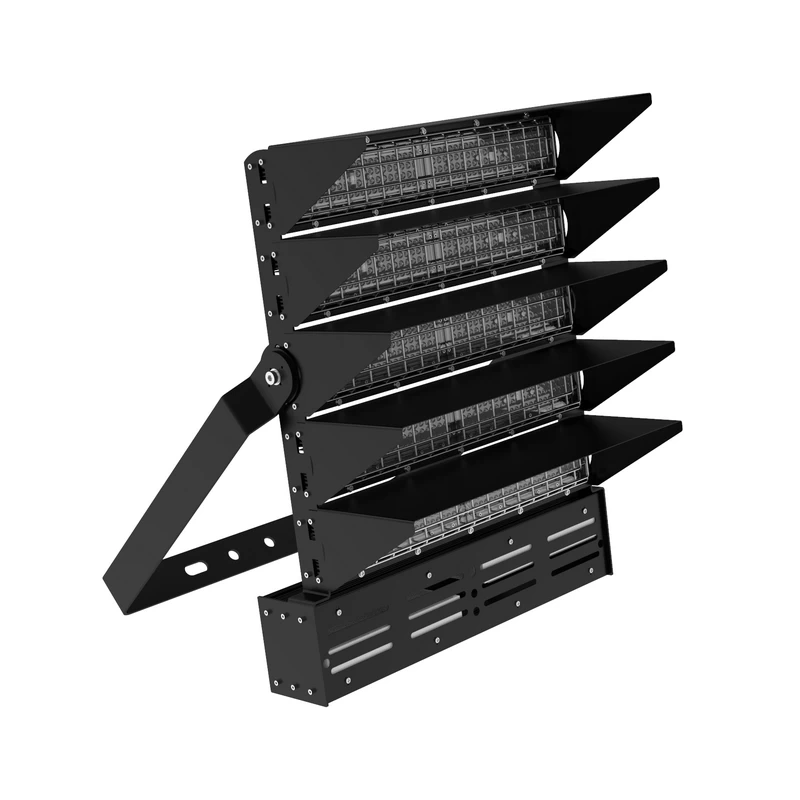

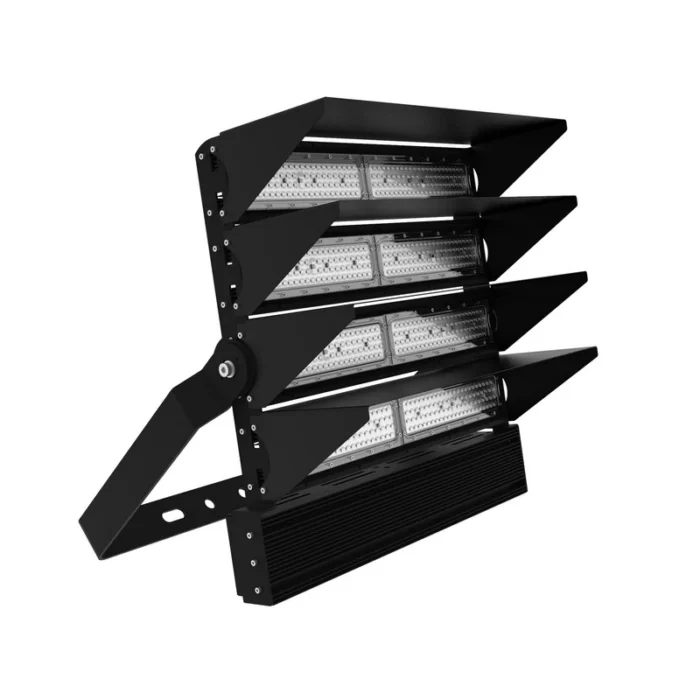

TransformerⅡ Perfect Beam Angle LED Stadium Lights

TransformerⅡled stadium lights, and it is a 투광 조명. With high-strength extruded aluminum shell, has IP65 protection level, effective waterproof, anti-corrosion and insect-proof, and can adapt to harsh environments. Modular light source structure, large power range, luminous flux up to 78000lm, intelligent control and dimmable, wide lighting range. Suitable for large Led sports lighting.Adjustable angle mounting bracket with scale, strong on-site applicability.

제품 특징

  1. 넓은 전력 범위: 120W~600W
  2. 다양한 배광 각도
  3. IK08 등급, IP65 방수
  4. 빛 공해 및 광 손실 감소
  5. 다양한 보호 커버 옵션

🔔 Ledrhythm 제품은 글로벌 시장을 위해 설계되었습니다. 인증에 대한 자세한 내용은 영업팀에 문의하세요.

🔔 제품 정보는 참고용으로만 제공됩니다. 일부 옵션은 각 구성에 따라 제공되지 않을 수 있습니다. 자세한 내용은 문의해 주세요.

TransformerⅡ is a high-performance, multi-purpose LED flood light. It is also a professional LED stadium lights.Designed for large lighting environments such as ports, stadiums, parking lots, etc.



Full power output, flexible light distribution

TransformerⅡ supports full power operation and can flexibly select different lighting solutions according to the actual scene. Whether it is large-area lighting or key area fill lighting, it can easily handle it.



A variety of optical designs to suit different scenarios

Provides symmetrical/asymmetrical light distribution to meet the lighting needs of various scenes such as stadiums, billboards, courts (such as tennis, basketball, football, etc.).
Adopts polarized light design to effectively reduce light pollution and light loss, and achieve efficient and environmentally friendly lighting.It is one of the best stadium LED lights



Stable, reliable and durable

The lamp body adopts PC lens + tempered glass structure, with IK08 impact resistance, shatterproof and pressure-resistant.
With IP65 waterproof and dustproof rating, worry-free use around the clock.



Intelligent heat dissipation and moisture-proof design

Football stadium lights often need to run continuously for dozens of hours.The internal design has ventilation holes to balance the air pressure, effectively prevent moisture from entering, and ensure long-term stable operation.
The lamp housing is sturdy and equipped with a steel wire mesh to adapt to complex installation environments and enhance safety.

TransformerⅡ is designed with environmental practicality in mind, with a lifespan of over 50,000 hours, high luminous efficiency and high color rendering, which can significantly reduce subsequent maintenance costs and is an ideal choice for floodlights.



시리즈 TransformerⅡ

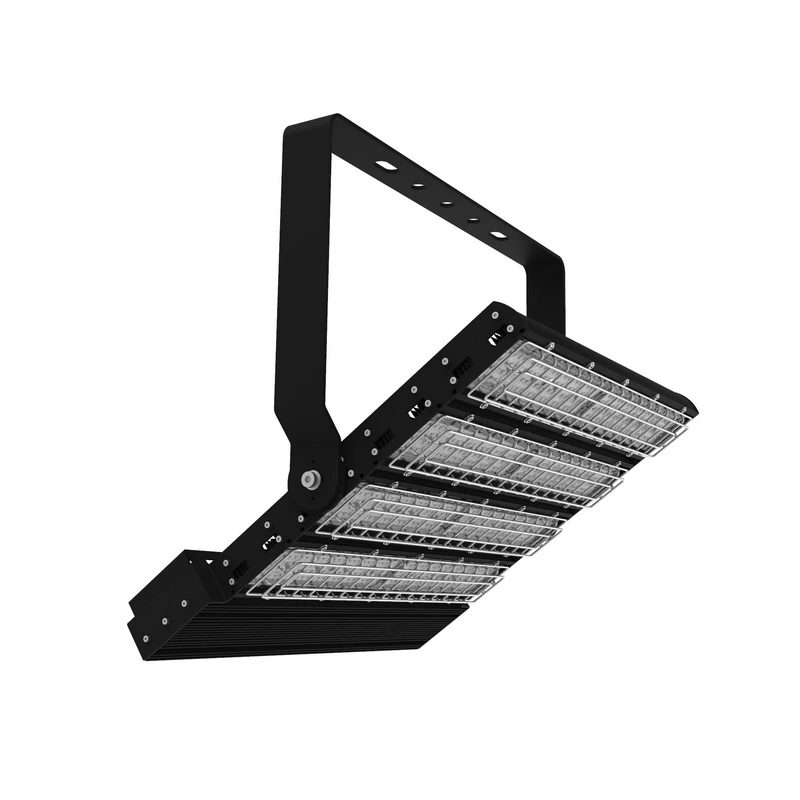

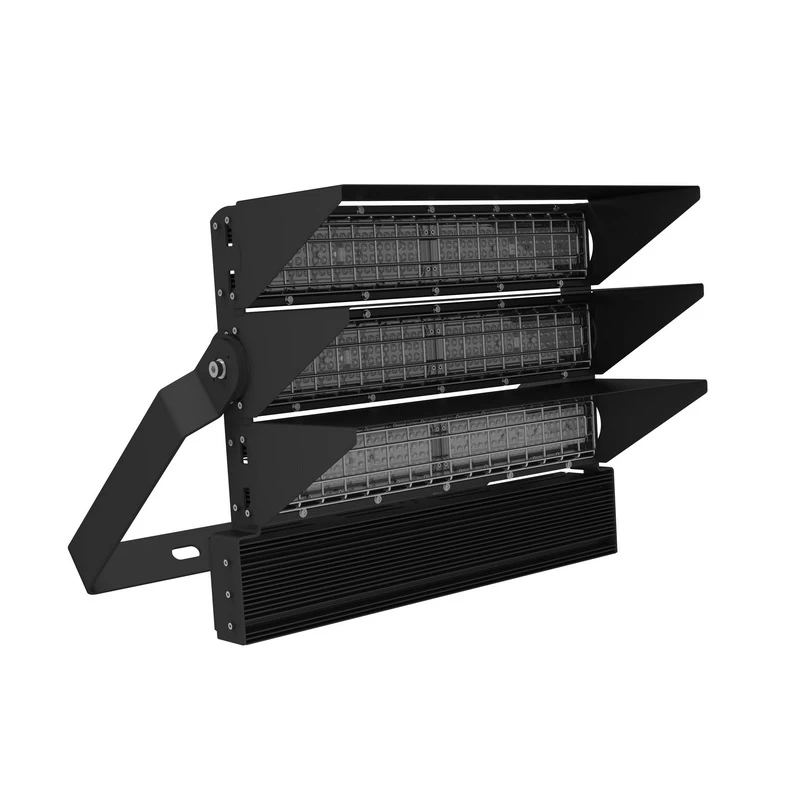

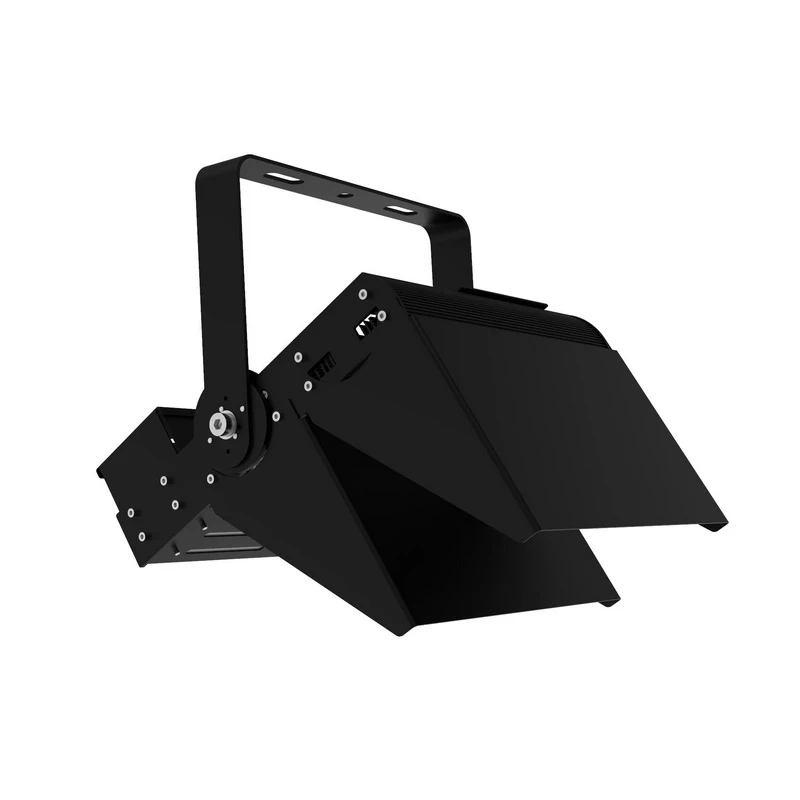

전원 120W, 180W, 240W, 360W, 480W, 600W
예상 수명 50,000시간 이상
평가 IP65
CRI(연색성 지수) >70
작동 온도 -30°C - +45°C
상대 습도 0-90% RH
역률 ≥95%
입력 라인 전압 120-277/277-480 VAC
입력 라인 주파수 50/60Hz
LED 칩 Lumileds
디밍 디밍 가능 0-10V 표준/DALI 2
LED 효율성 3000K-120lm/w, 4000K-130lm/w, 5000K-130lm/w, 5700K-125lm/w
보증 5년
주택 luminum extrusion
개스킷 네오프렌 고무
완료 ASTM B117에 따라 4000시간 염수 분무 테스트를 거친 보호용 UV 안정화 파우더코트
애플리케이션 Parking lots, stadiums, port terminals

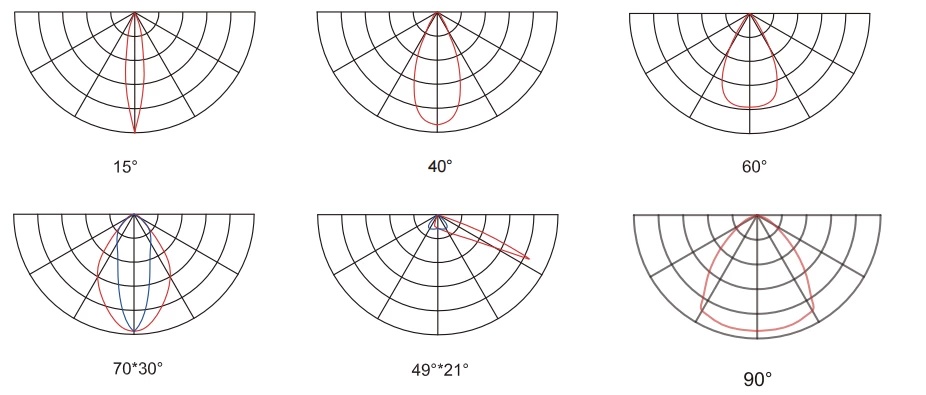

led stadium lights optics

led stadium lights size

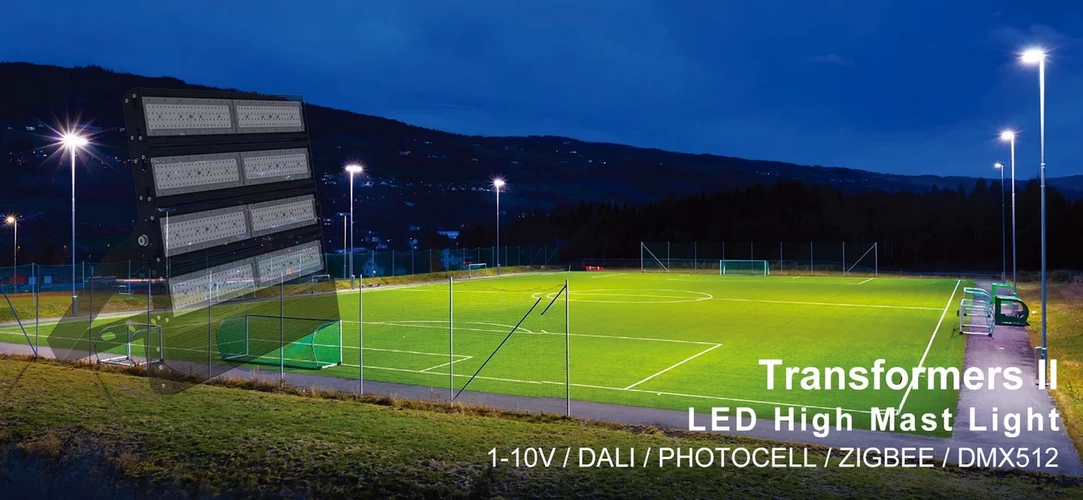

led stadium lights football

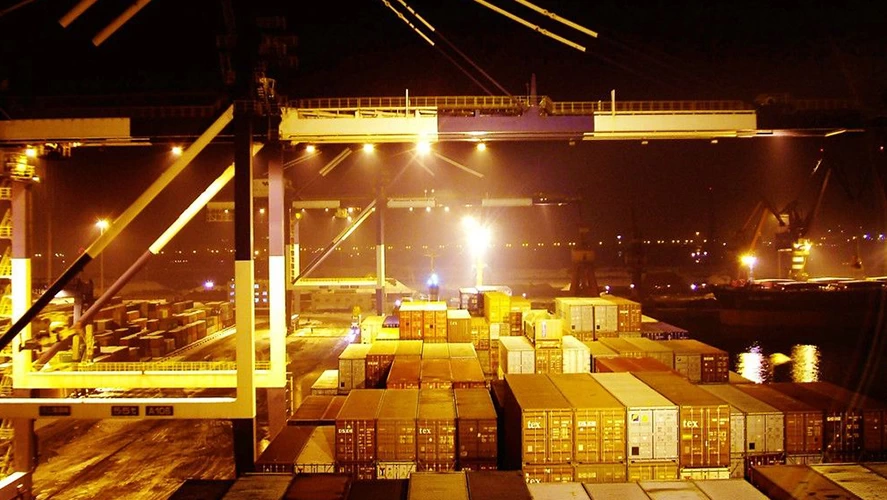

ip65 led light port

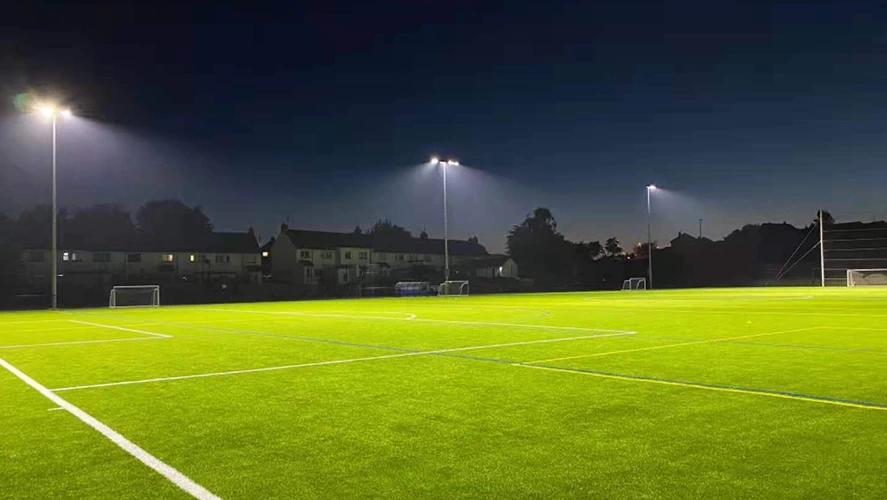

stadium led lights application
Are this stadium led lights suitable for large-area floodlighting?
Yes, they are specifically designed as high-power floodlights for large-area illumination. They ensure wide coverage with excellent uniformity.
In addition to stadium lighting, is it suitable for other environments?
Of course, TransformerⅡ is mainly a floodlight, but it has been successfully used in stadiums in the past. It is still suitable for any place that requires large-scale lighting, such as ports, parking lots, billboards, etc.
How do I choose the right beam angle for stadium light?
Beam angle selection depends on the mounting height and the area to be lit. Narrow beams (10–30°) are ideal for long-throw lighting, while wider beams (60–120°) are better for general area cover.
