LED 路灯
LED 路灯
街灯
light street lamp
led street light
街灯

Moon Ⅲ LED路灯 |多场景照明

MoonⅢ lighting on the road is the most innovative, cutting-edge and durable product we have developed in the LED 路灯 series. It is IP66, IK08 rated, corrosion and shock-proof tested, and has strong heat dissipation performance. It has an intelligent control system and 0-10V dimming technology, with a light efficiency of 150lm/W, and maximum energy cost savings. It is available in four sizes, with a detachable head, and simple, fast and safe installation and maintenance.

产品特点

  1. 40瓦、60瓦、80瓦、100瓦、120瓦、150瓦、200瓦、240瓦、300瓦
  2. 0 – 10 V and DALI dimming standard
  3. 高防护等级 IP66、IK08
  4. 抗腐蚀粉末涂层，最小 3.0 密耳
  5. 灯体打开，电源自动切断



索取最新价格

Ledrhythm 产品专为全球市场设计。 有关认证详情，请联系我们的销售团队。

🔔 产品信息仅供参考。某些选项可能不适用于每种配置。详情请联系我们。

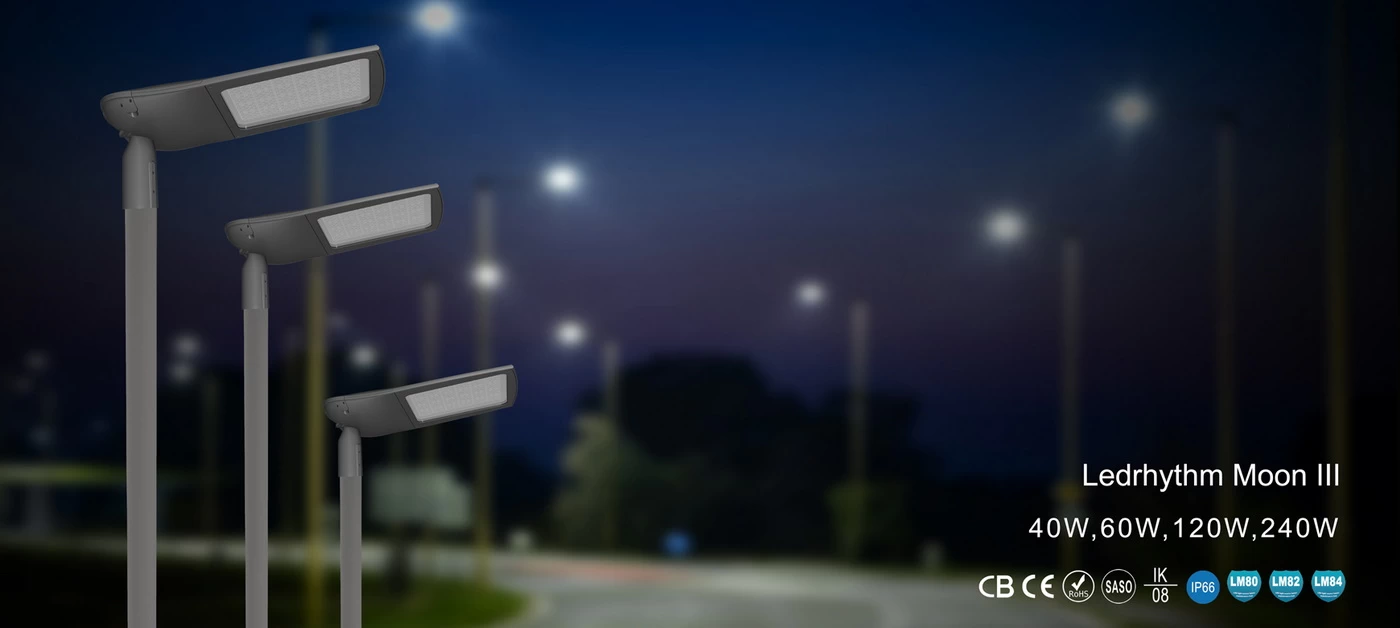

Moon Ⅲ LED street lights are designed for a wide range of outdoor applications, including city street lights and highway lights. As experienced LED street light suppliers, we provide smart lighting solutions with high efficiency (up to 150lm/W), advanced IP66 and IK08 protection, and intelligent control options for modern infrastructure needs.

Led street lighting projects cover a wide range, and energy saving is crucial for the street lamp demand in the market. We must take lifespan into account rather than the original cost, and authoritative statistics show that this cost is recovered within two or three years. Its lifespan is more than 50,000 hours, which means that if it glows 12 hours a day, its lifespan can last for 11 years

  • 120 – 277 V Standard; 347-480 V option available
  • 10 year warranty
  • Corrosion resistant powder-coated finish to minimum 3.0 mil. thickness; Marine grade finish option available, consult factory
  • Die cast aluminum housing designed for optimal thermal performance
  • Universal control: 0 – 10 V and DALI dimming standard
  • C136.41 compliant rotating photocell receptacle
  • Superior optical distribution options
  • Wildlife shield and leveling bubble standard
  • Standard finish tested to 3,000 hours salt
  • spray in accordance with ASTM B117
  • IDA Dark Sky listed on ≤3000K listings
  • IP66 rated optical chamber
  • 3G Bridge Vibration Rated (ANSI C136.31-2010)
  • Suitable for wet locations
  • Surge Protection (ANSI C136.2-2015) 10kV 5kA Standard; 20kV 10kA optional*
  • Slip fitier with ± 15° tilt adjustment in 2½° steps for mounting versatility
  • NEMA and distribution labeling come standard on all fixtures

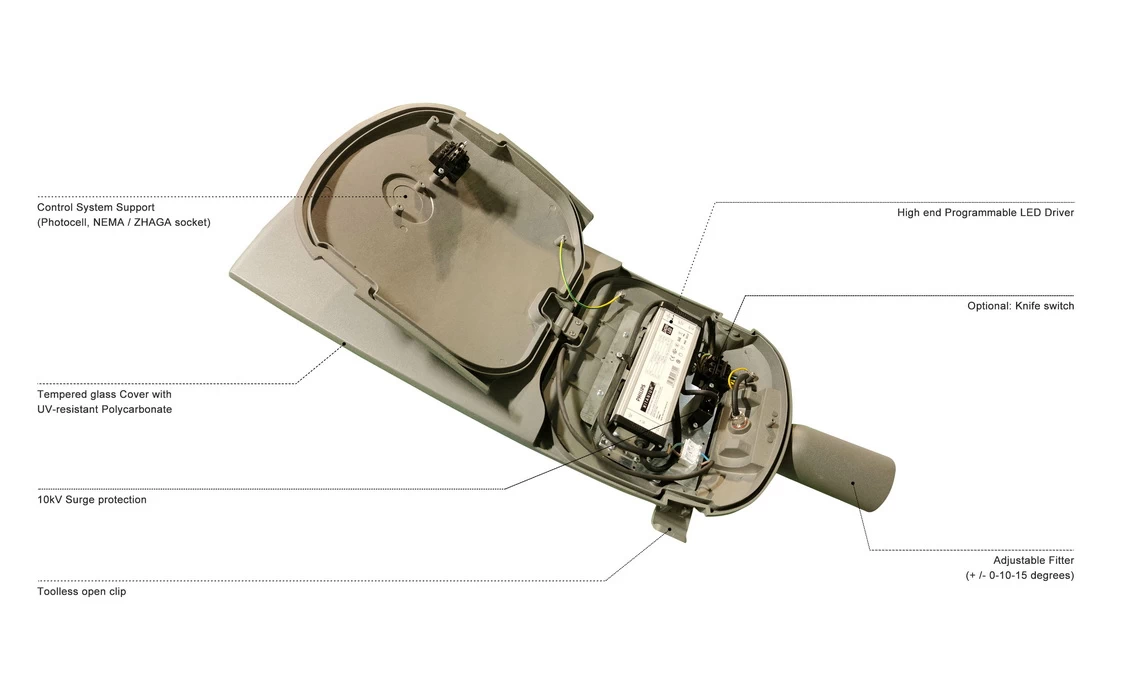

Product internal introduction





系列 MoonⅢ
电源 40W,60W,80W,100W,120W,150W,200W,240W,300W
预期寿命 超过 50,000 小时
评级 IP66
显色指数 (CRI) >70
工作温度 -30°C - +45°C
相对湿度 0-90% RH
功率因数 ≥95%
输入线路电压 120-277/277-480 伏
输入线路频率 50/60 赫兹
LED 芯片 Lumileds
调光 0-10V Optiona
LED 效率 3000K-140 lm/w、4000K-150 lm/w、5000K-150 lm/w、5700K-150 lm/w
保修 5 年
住房 压铸铝 A380 合金 ADC12
垫圈 氯丁橡胶
完成 保护性紫外线稳定粉末涂层 4000 小时盐雾测试，符合 ASTM B117 标准
应用 公路、街道、高速公路

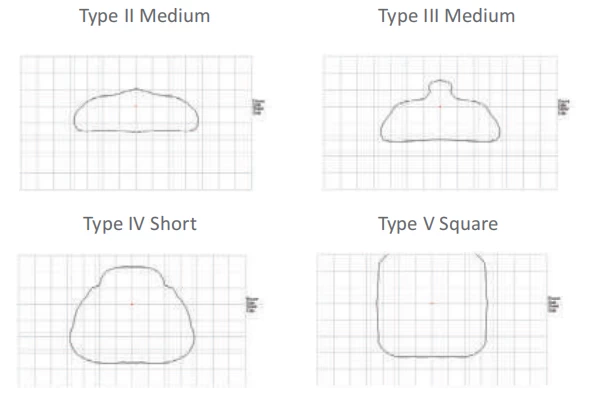

led street lighting optics

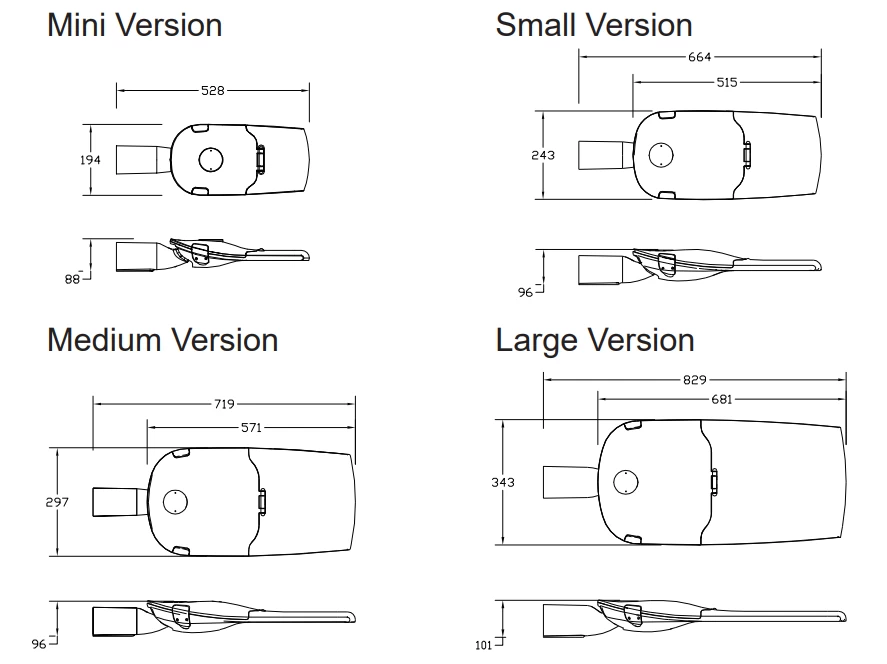

led street lights size

city street lamp
highway lights
city street lights​
led street lights MoonⅢ
How do I choose the appropriate wattage of LED street lights?

Appropriate wattage depends on the application.For city street lamp and residential roads, 30W–100W is usually sufficient.

For highway lights, higher power such as 120W–200W or above is recommended to ensure optimal brightness and uniformity.

Our LED street lighting are available in a wide range of wattages and support smart dimming to adapt to different environments.

What is the difference between urban road and highway street lights?

Urban roads (city streets): Emphasis on visual comfort, lower wattage, often closer pole spacing. Use lights with low glare, smart dimming, and good color rendering.Highways:

Require high luminous efficacy (e.g. 150lm/W), long beam distance, and robust construction with IP66 and IK08 protection for long-term durability.

Are you a LED street light supplier? Can I get OEM/ODM services?

Yes, ledrhythm are a professional LED street light supplier with strong R&D and manufacturing capacity. We offer:

OEM/ODM customization

Photometric design support (IES files, lighting simulation)

Flexible control integration and light distribution angle selection
We support large-scale municipal and infrastructure projects globally.
